Physical size and weight
| Net weight |
70.2
g |
| Width of runner block |
77
mm |
| Height runner block with guide rail |
49.8
mm |
| Dimension diameter S2 (profiled rail systems) |
7
mm |
| Dimension diameter S3 (profiled rail systems) |
5
mm |
| Dimension diameter S4 (profiled rail systems) |
4
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
45
|
| Mass m (g) |
71
g |
| Size footnote |
For cover strip 0.3 mm
|
| Dimension A (profiled rail systems) |
77
mm |
| Dimension A1 (profiled rail systems) |
2
mm |
| Dimension D |
6
mm |
| Dimension D1 |
9
mm |
| Dimension E8 (profiled rail systems) |
62.9
mm |
| Dimension E8.1 (profiled rail systems) |
69.6
mm |
| Dimension E9 (profiled rail systems) |
16
mm |
| Dimension E9.1 (profiled rail systems) |
35.8
mm |
| Dimension H |
49.8
mm |
Description

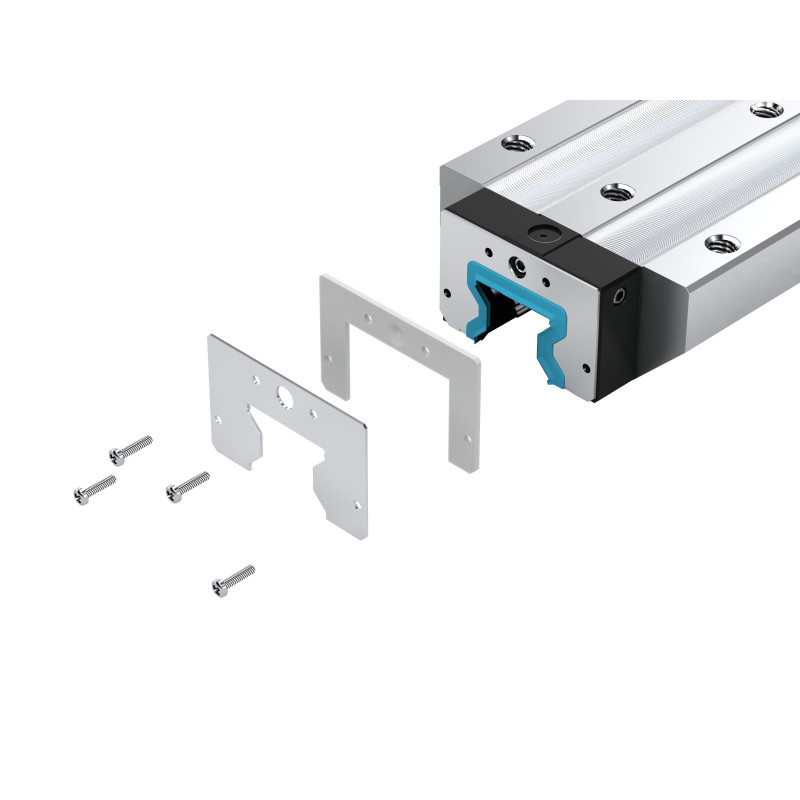

Cover plate wiper for roller rail systems gen.1
Size = 45
Features
- For mounting on roller runner blocks for all roller guide rails
- Cover plate wiper; material: Rust-free spring steel in as per DIN EN 10088; version: blank
- Spacer plate; material: Aluminum
