Physical size and weight
| Net weight |
62.24
g |
| Width of runner block |
64
mm |
| Height runner block with guide rail |
40
mm |
| Dimension diameter S2 (profiled rail systems) |
7
mm |
| Dimension diameter S3 (profiled rail systems) |
4
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
35
|
| Mass m (g) |
55
g |
| Dimension A (profiled rail systems) |
64
mm |
| Dimension D |
7
mm |
| Dimension D1 |
9.5
mm |
| Dimension E8 (profiled rail systems) |
50.3
mm |
| Dimension E9 (profiled rail systems) |
12.35
mm |
| Dimension H |
40
mm |
Description

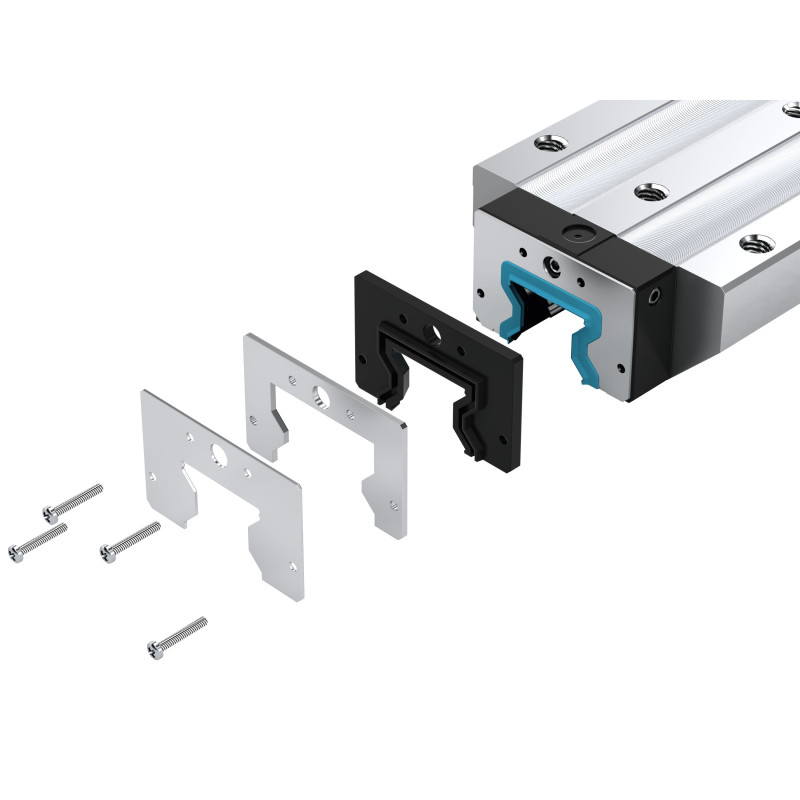

FKM seal and cover plate wiper set for roller rail systems gen.1
Size 35
Features
- For mounting on Roller Runner Blocks for Roller Guide Rails with cover strip
Manual (2)
Roller rail systems High Precision RSHP
(EN)
|
Sign in
|
|
R181030570
