Physical size and weight
| Dimension diameter S2 (profiled rail systems) |
7
mm |
| Dimension diameter S3 (profiled rail systems) |
4
mm |
| Dimension diameter S4 (profiled rail systems) |
3
mm |
| Height runner block with guide rail |
39.8
mm |
| Net weight |
44.61
g |
| Width of runner block |
63
mm |
Other properties
| Accessories for |
Runner Block
|
| Dimension A (profiled rail systems) |
63
mm |
| Dimension A1 (profiled rail systems) |
2
mm |
| Dimension D |
1
mm |
| Dimension D1 |
2.6
mm |
| Dimension E8 (profiled rail systems) |
50.3
mm |
| Dimension E8.1 (profiled rail systems) |
56.6
mm |
| Dimension E9 (profiled rail systems) |
12.4
mm |
| Dimension E9.1 (profiled rail systems) |
28.4
mm |
| Dimension H |
39.8
mm |
| Nominal size |
35
|
| Product information |
Set with screws
|
| Size footnote |
Set for runner block R18. ... 18 or ... 68 (wall mounting) upon request
|
Description

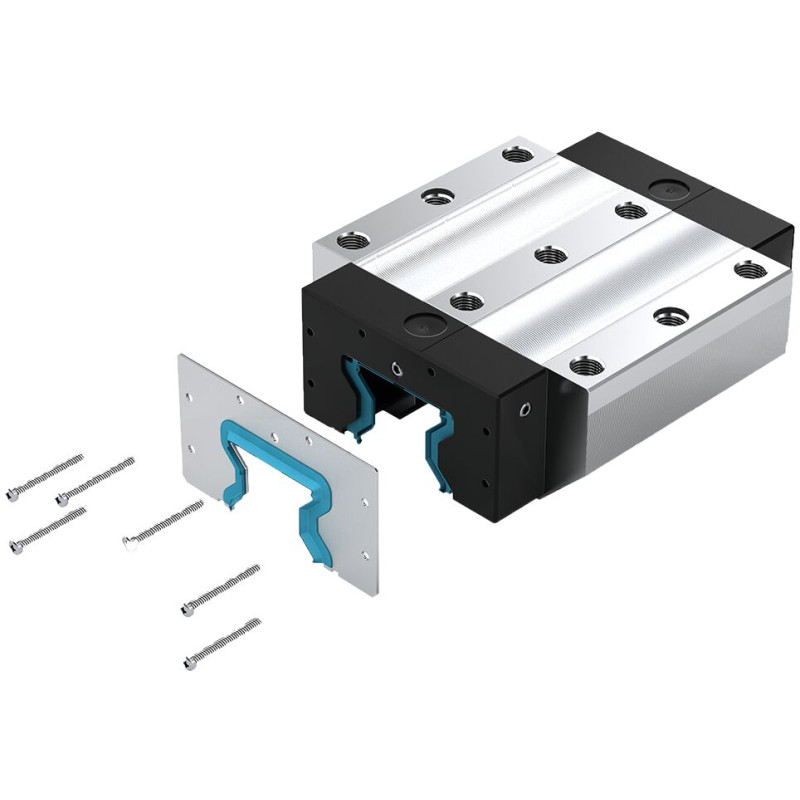

Front seal for roller rail systems
Size 35
Features
- Already integrated in RSHP (replacement only for first generation roller runner blocks)
- Material: Corrosion-resistant spring steel according to DIN EN 10088 with plastic seal
- Design: bright
