Physical size and weight
| Net weight |
45.695
g |
| Dimension diameter S3 (profiled rail systems) |
7
mm |
| Dimension diameter S4 (profiled rail systems) |
4
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
35
|
| Tightening torque |
0.4
Nm |
| Dimension A4 (profiled rail system) |
67.4
mm |
| Dimension B1 |
6
mm |
| Dimension B2 (profiled rail systems) |
8
mm |
| Dimension E8 (profiled rail systems) |
50.3
mm |
| Dimension E9 (profiled rail systems) |
12.05
mm |
| Dimension H3 |
39.7
mm |
| Max. tightening torque |
0.4
Nm |

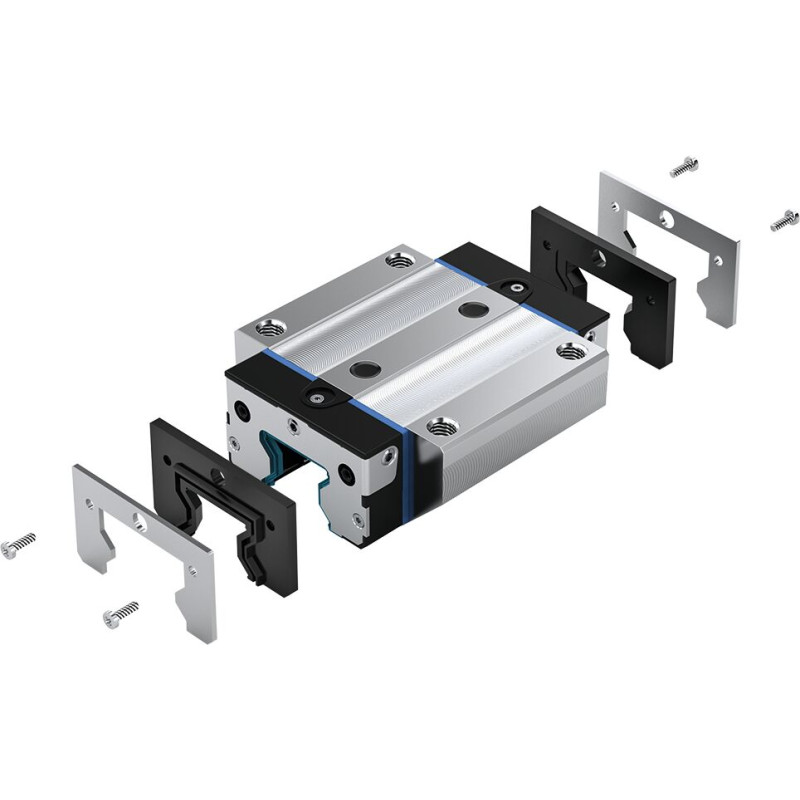

Description
FKM seal for roller rail systems
Size 35
Features
- For mounting on roller runner blocks for all roller guide rails
- Two-piece FKM seal
- Material: Stainless steel plus FKM seal
- Simple assembly/removal on fixed roller guide rail
- Observe the mounting instructions
CAD (2)
Manual (2)
Roller rail systems High Precision RSHP
