Physical size and weight
| Dimension diameter S12 (profiled rail systems) |
7
mm |
| Dimension diameter S9 (profiled rail systems) |
35
mm |
| Net weight |
27.2
g |
Other properties
| Accessories for |
Runner Block
|
| Dimension A4 (profiled rail system) |
68
mm |
| Dimension B3 |
4
mm |
| Dimension B4 |
1.5
mm |
| Dimension E8 (profiled rail systems) |
50
mm |
| Dimension E9 (profiled rail systems) |
14.2
mm |
| Dimension H3 |
38.3
mm |
| Mass m (g) |
27.2
g |
| Nominal size |
35
|
Description

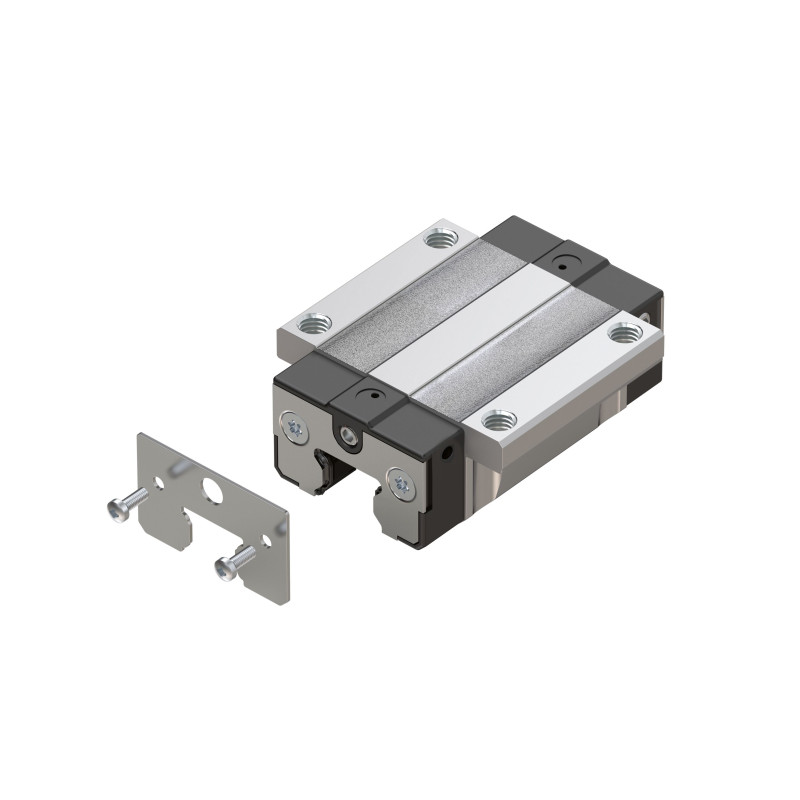

Cover plate wiper for ball rail systems Compact Line
Size = 35
Features
- Material: Corrosion-resistant steel as per DIN EN 10088
- Design: bright
- Precision design with a maximum gap dimension of 0.1 to 0.3 mm
