Physical size and weight
| Height runner block with guide rail |
48
mm |
| Net weight |
73
g |
Other properties
| Accessories for |
Runner Block
|
| Dimension A4 |
69
mm |
| Dimension B4 |
16
mm |
| Dimension E8 |
58
mm |
| Dimension E9 |
17.35
mm |
| Dimension H |
48
mm |
| Dimension H3 |
39.85
mm |
| Dimension K2 |
6
mm |
| Dimension K3 |
6.9
mm |
| Dimension K4 |
6.9
mm |
| Maximum operating temperature |
+ 60
|
| Nominal size |
35
|
| Operating temperature (min. … max.) |
+60 °C
|
| Possible travel distance s with front lube units |
25000
km |
| Tightening torque |
1.2
Nm |
Description

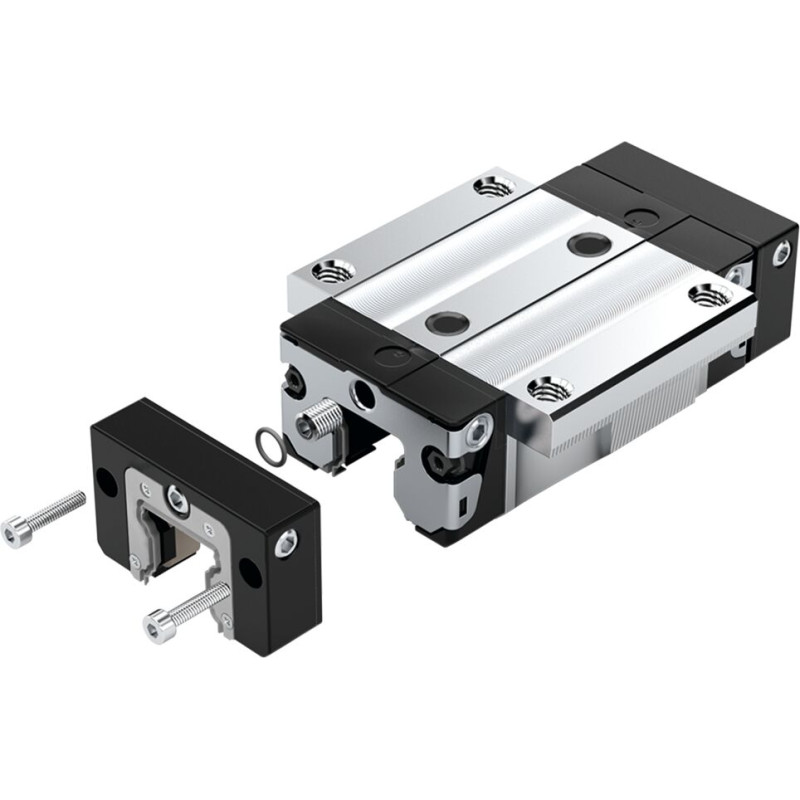

Front lube unit for ball rail systems
Size 35
Features
- For a travel distance of up to 25,000 km without re-lubrication
- Ball runner block only requires initial lubrication with grease
- Front lube units on both sides of the ball runner block
- Low lubricant loss
- Reduced oil consumption
- No lubrication lines
- Front lube unit can be refilled using the lube nipple on the end-face or at the side.
- Lube connection on the end-face of the front lube unit is suitable for lubricating the ball runner block with grease.
