Physical size and weight
| Net weight |
86
g |
| Dimension diameter S12 (profiled rail systems) |
7
mm |
| Dimension diameter S9 (profiled rail systems) |
4
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
30
|
| Type |
with/without cover strip
|
| Dimension A4 (profiled rail system) |
59
mm |
| Dimension B3 |
8.2
mm |
| Dimension B4 |
5.8
mm |
| Dimension E8 (profiled rail systems) |
48.4
mm |
| Dimension E9 (profiled rail systems) |
14.1
mm |
| Dimension H3 |
34.5
mm |
Description

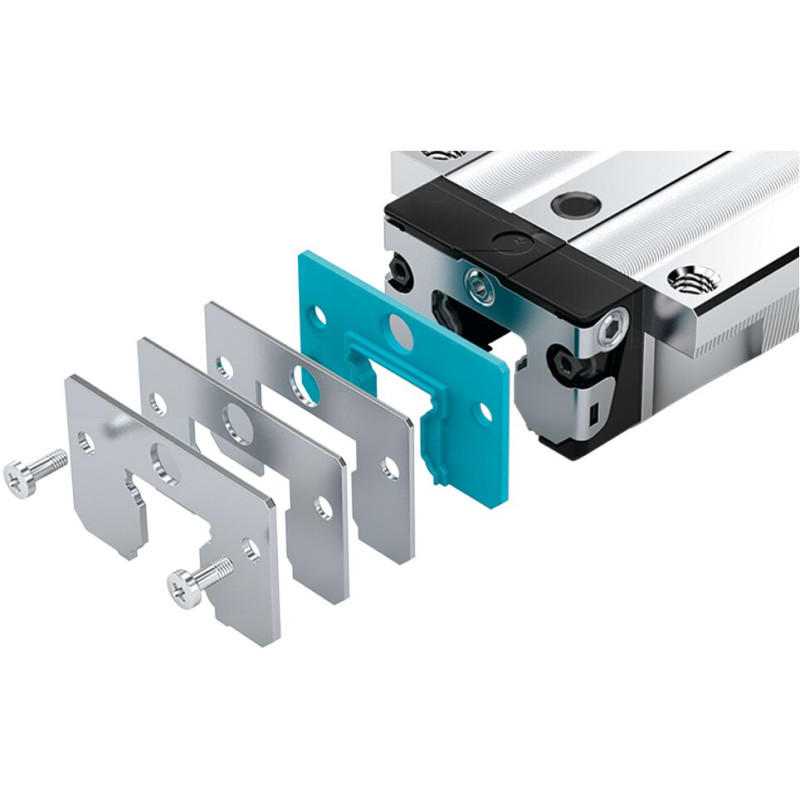

Seal kit for ball rail systems
With/without cover strip
Size 30
Features
- The seal kit is recommended when combining the cover plate wiper with a two-piece front seal.
CAD (2)
Manual (2)
Ball rail systems High Precision BSHP
