Physical size and weight
| Net weight |
21
g |
| Height runner block with guide rail |
36.1
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
25
|
| Mass m (g) |
23.8
g |
| Dimension A4 (profiled rail system) |
46.6
mm |
| Dimension B3 |
13
mm |
| Dimension E8 (profiled rail systems) |
33
mm |
| Dimension E9 (profiled rail systems) |
11.35
mm |
| Dimension H |
36.1
mm |
| Dimension H3 |
29.9
mm |
| Dimension K3 (profiled rail systems) |
4.5
mm |
Description

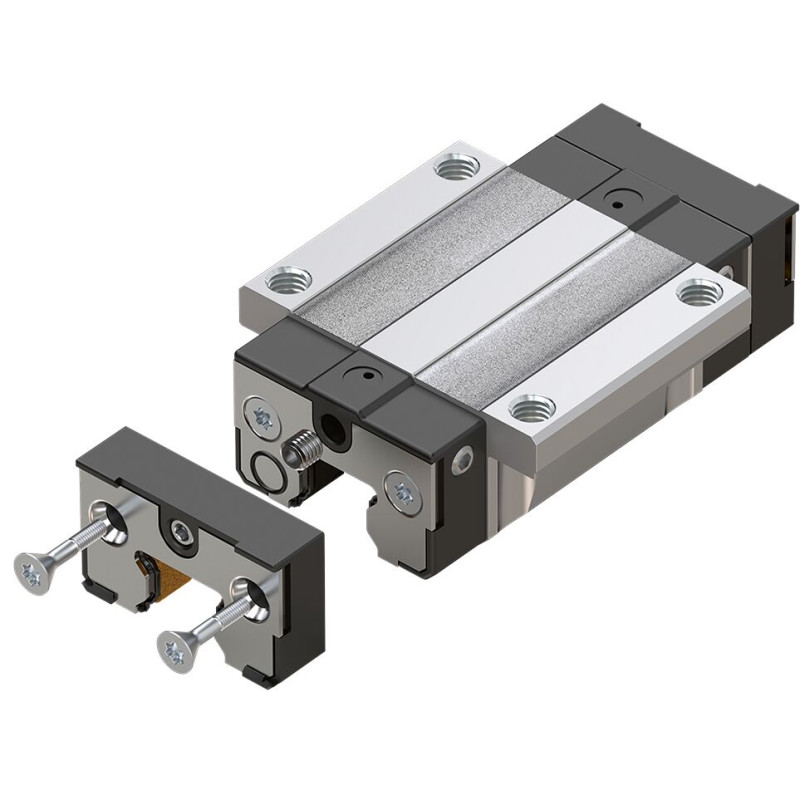

Front lube unit for ball runner blocks Compact Line
Size 25
Features
- For extended travel distances without relubrication
- Ball runner block only requires initial lubrication with grease
- Front lube units on both sides of the ball runner block
- Low lubricant loss
- Reduced oil consumption
- No lubrication lines
- Max. operating temperature 60°C
- Lube connection on the end-face of the front lube unit is suitable for lubricating the ball runner block with grease.
