Physical size and weight
| Net weight |
9.8
g |
| Dimension diameter S12 (profiled rail systems) |
7
mm |
| Dimension diameter S9 (profiled rail systems) |
28
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
25
|
| Mass m (g) |
9.8
g |
| Dimension A4 (profiled rail system) |
46
mm |
| Dimension B3 |
3.5
mm |
| Dimension B4 |
1
mm |
| Dimension E8 (profiled rail systems) |
33
mm |
| Dimension E9 (profiled rail systems) |
11.35
mm |
| Dimension H3 |
27.85
mm |
Description

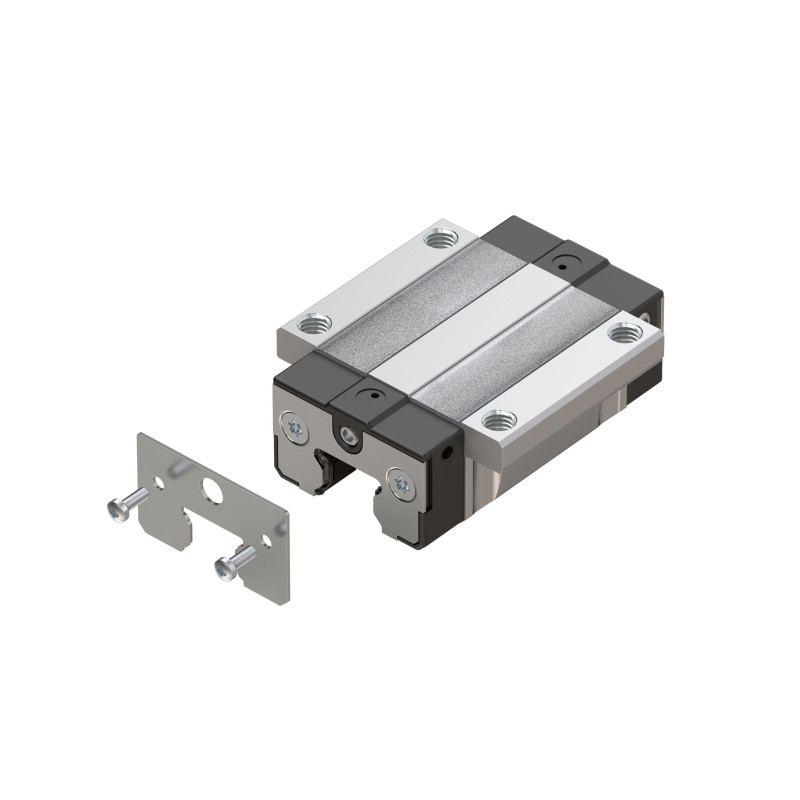

Cover plate wiper for ball rail systems Compact Line
Size = 25
Features
- Material: Corrosion-resistant steel as per DIN EN 10088
- Design: bright
- Precision design with a maximum gap dimension of 0.1 to 0.3 mm
CAD (1)
Manual (1)
Catalog (1)
Ball rail systems Compact Line BSCL
