Physical size and weight
| Net weight |
13.62
g |
| Dimension diameter S3 (profiled rail systems) |
7
mm |
| Dimension diameter S4 (profiled rail systems) |
4
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
25
|
| Mass m (g) |
7
g |
| Dimension A4 (profiled rail system) |
45.4
mm |
| Dimension B1 |
1
mm |
| Dimension B2 (profiled rail systems) |
3
mm |
| Dimension E8 (profiled rail systems) |
33.4
mm |
| Dimension E9 (profiled rail systems) |
7.45
mm |
| Dimension H3 |
29.15
mm |
Description

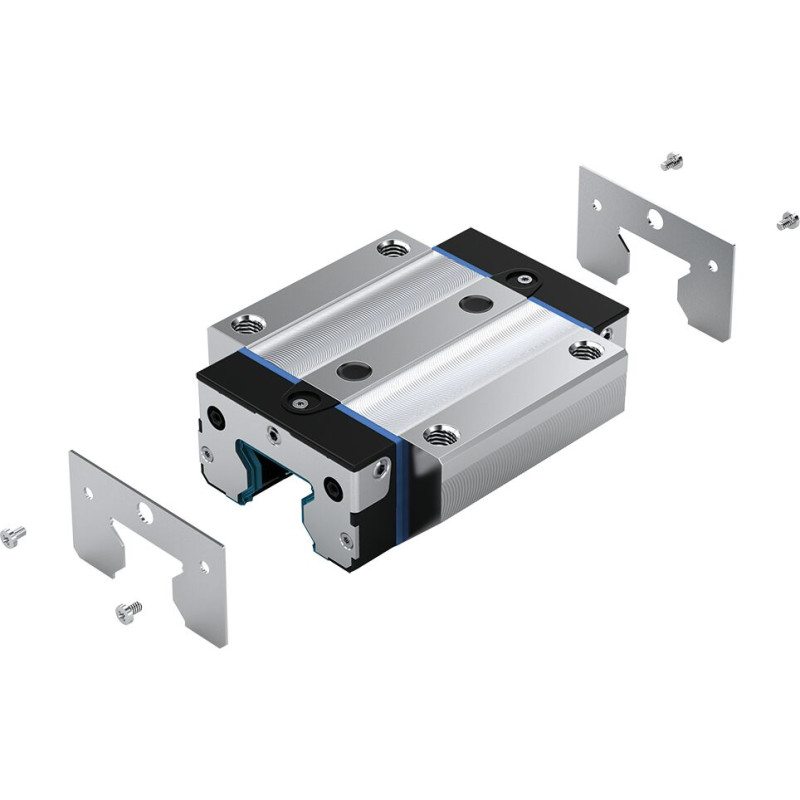

Cover plate wiper for roller rail systems RSHP
Size = 25
Features
- For mounting on roller runner blocks for all roller guide rails
- Material: Rust-free spring steel in as per DIN EN 10088
- Design: bright
