Physical size and weight
| Dimension S8 thread diameter (profiled rail systems) |
M5
|
| Net weight |
0.786
kg |
Other properties
| Accessories for |
Guide rail
|
| Dimension h1 |
6
mm |
| Dimension L |
957
mm |
| Dimension S5 (profiled rail system) |
6
mm |
| Dimension T |
60
mm |
| Dimension T1 |
28.5
mm |
| Nominal size |
35
|
| Pitch T guide rail |
60
mm |
| Product information |
Suitable for size 15 to 35
|
Description

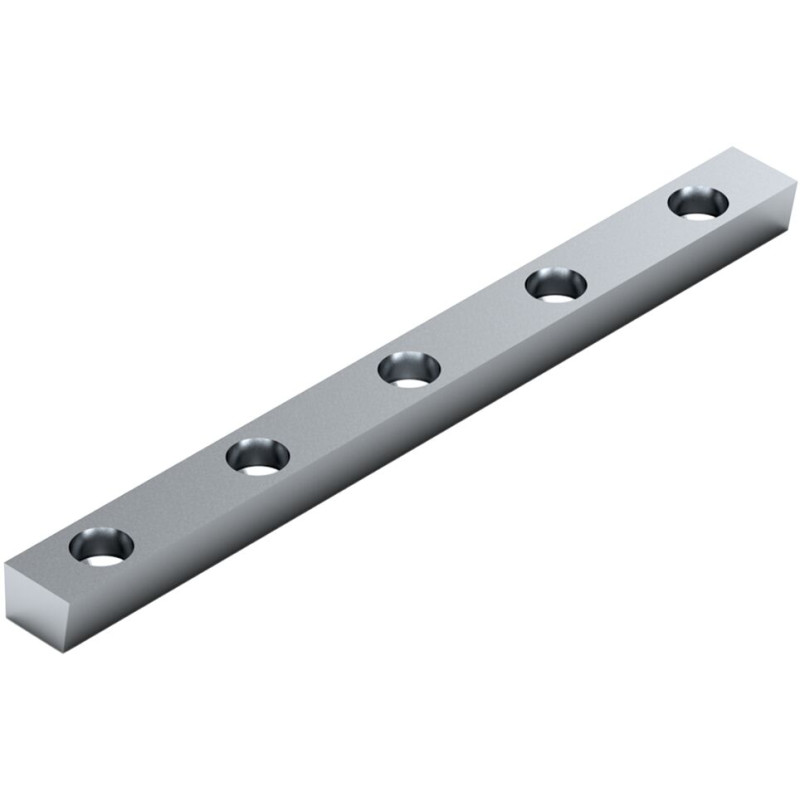

V-guide for lateral retention
Suitable for sizes 25, 30 and 35
Features
- Mounting aid for lateral retention of ball guide rails
- Material: Steel
- Design: black finished
CAD (5)
Catalog (1)
Ball rail systems High Precision BSHP
(EN)
|
