Physical size and weight
| Net weight |
18.4
g |
| Width of runner block |
44
mm |
| Height runner block with guide rail |
29.5
mm |
| Dimension diameter S3 (profiled rail systems) |
4
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
25
|
| Mass m (g) |
20
g |
| Size footnote |
Viton seal R181020070 for size 25 in preparation
|
| Dimension A (profiled rail systems) |
44
mm |
| Dimension D |
6.25
mm |
| Dimension D1 |
8.25
mm |
| Dimension E8 (profiled rail systems) |
33.4
mm |
| Dimension E9 (profiled rail systems) |
7.75
mm |
| Dimension H |
29.5
mm |
Description

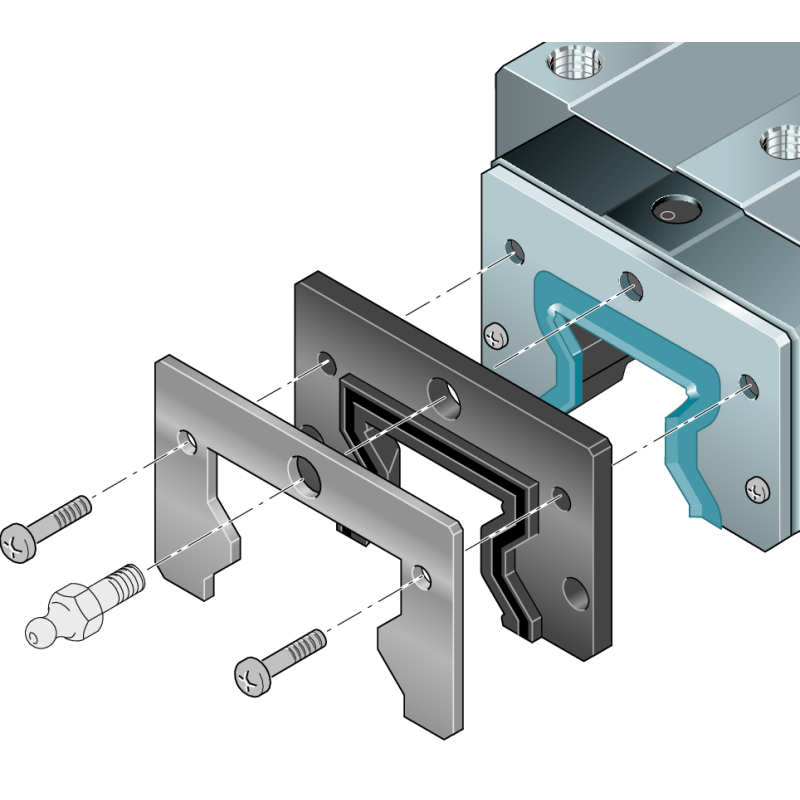

Viton seal for roller rail systems
Size 25
Features
- For mounting on roller runner blocks for all roller guide rails
- Material: Stainless steel plus seal made of Viton
- Easy mounting and removal even when guide rail is screwed down (note the mounting instructions).
- Two-piece
CAD (2)
Manual (2)
R181020030
(EN)
|
