Physical size and weight
| Net weight |
39.8
g |
| Dimension diameter S12 (profiled rail systems) |
51
mm |
| Dimension diameter S9 (profiled rail systems) |
4
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
20
|
| Type |
with/without cover strip
|
| Size footnote |
Not for ball runner blocks F.N (flange ... low) and S.N. (Slimline ... low)
|
| Dimension A4 (profiled rail system) |
42
mm |
| Dimension B3 |
6.9
mm |
| Dimension B4 |
4.5
mm |
| Dimension E8 (profiled rail systems) |
32.4
mm |
| Dimension E9 (profiled rail systems) |
6.8
mm |
| Dimension H3 |
24.3
mm |
Description

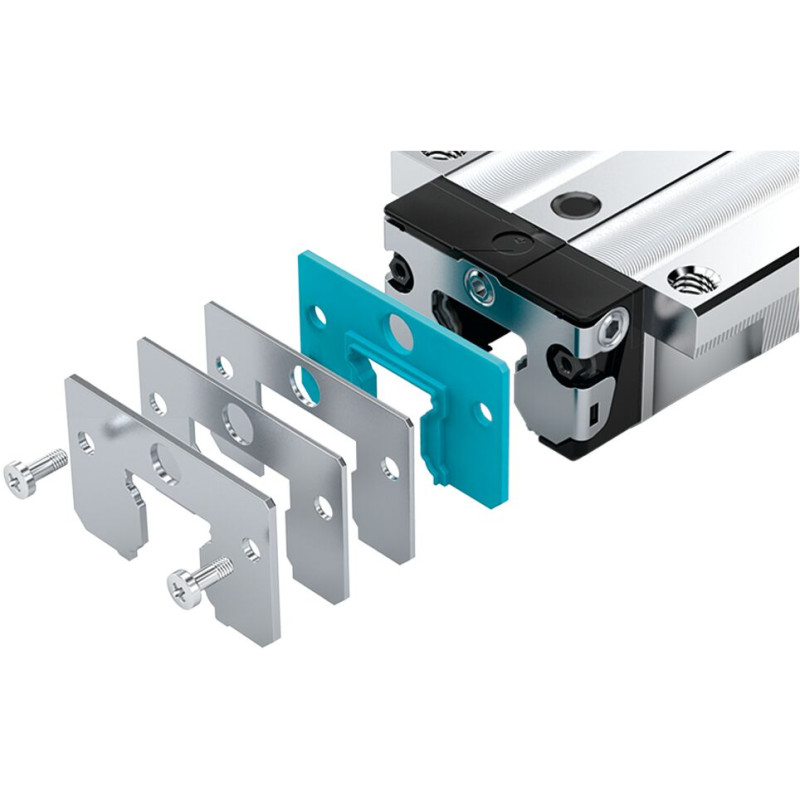

Seal kit for ball rail systems
With/without cover strip
Size 20
Features
- The seal kit is recommended when combining the cover plate wiper with a two-piece front seal.
