Physical size and weight
| Net weight |
8.4
g |
| Dimension diameter S12 (profiled rail systems) |
43
mm |
| Dimension diameter S9 (profiled rail systems) |
28
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
15
|
| Dimension A4 (profiled rail system) |
31.5
mm |
| Dimension B3 |
4.5
mm |
| Dimension B4 |
2.5
mm |
| Dimension E8 (profiled rail systems) |
20.5
mm |
| Dimension E9 (profiled rail systems) |
7.4
mm |
| Dimension H3 |
19.3
mm |
Description

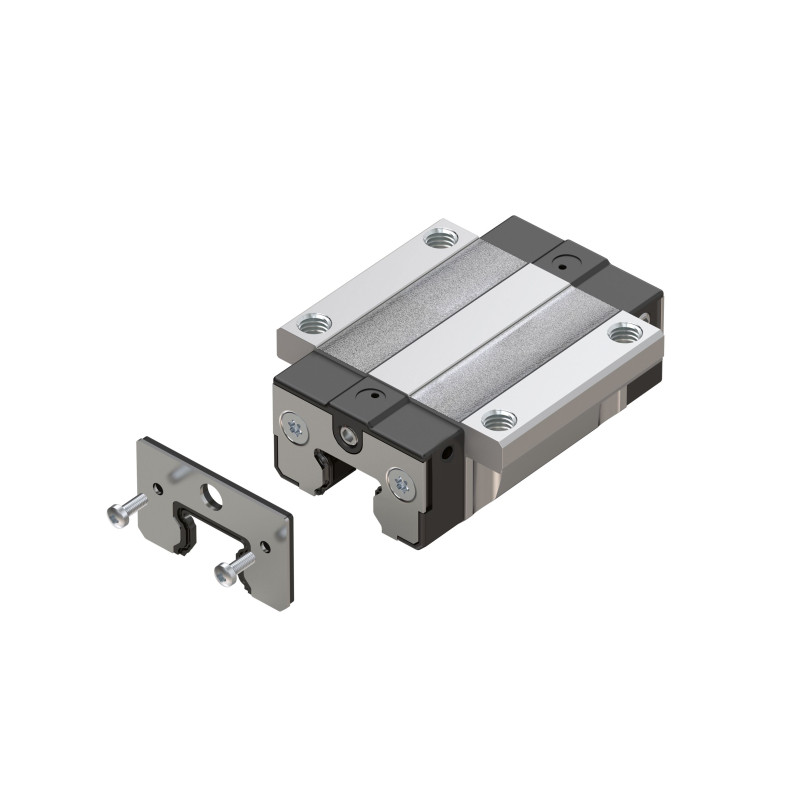

Front seal for ball rail system Compact Line
Size 15
Features
- Material: Corrosion resistant steel as per DIN EN 10088 with plastic seal ring
- Design: bright
CAD (1)
Manual (1)
Catalog (1)
Ball rail systems Compact Line BSCL
