Physical size and weight
| Net weight |
30.8
g |
| Dimension diameter S12 (profiled rail systems) |
43
mm |
| Dimension diameter S9 (profiled rail systems) |
35
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
15
|
| Type |
with/without cover strip
|
| Dimension A4 (profiled rail system) |
32
mm |
| Dimension B3 |
6.3
mm |
| Dimension B4 |
4.2
mm |
| Dimension E8 (profiled rail systems) |
24.55
mm |
| Dimension E9 (profiled rail systems) |
6.3
mm |
| Dimension H3 |
19
mm |
Description

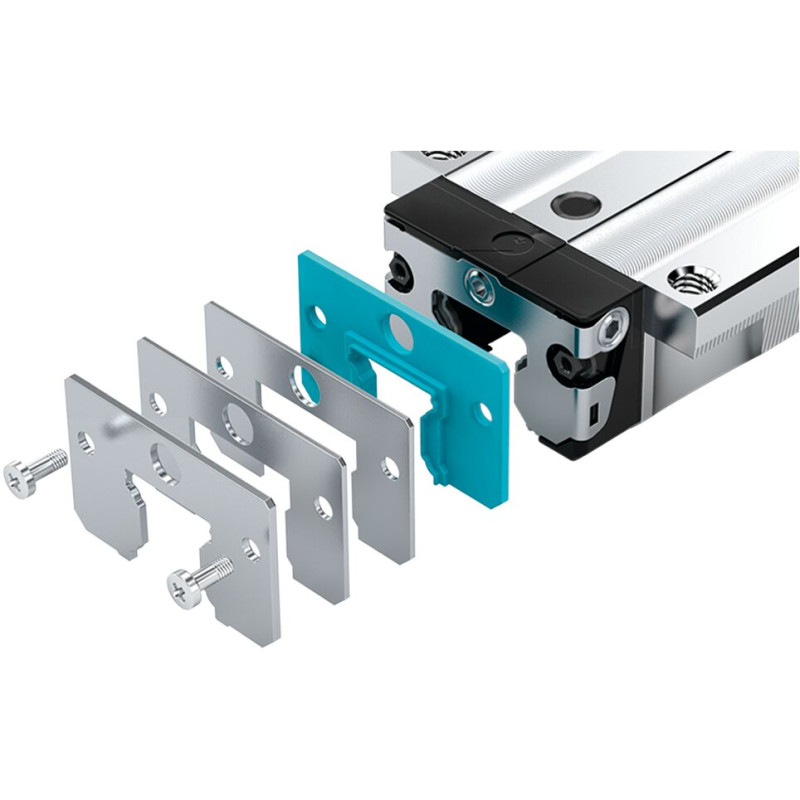

Seal kit for ball rail systems
With/without cover strip
Size 15
Features
- The seal kit is recommended when combining the cover plate wiper with a two-piece front seal.
