Physical size and weight
| Net weight |
0.654
kg |
| Width of runner block |
230
mm |
| Height runner block with guide rail |
133
mm |
| Dimension diameter S2 (profiled rail systems) |
9
mm |
| Dimension diameter S3 (profiled rail systems) |
65
mm |
| Dimension diameter S4 (profiled rail systems) |
65
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
125
|
| Product information |
Set with screws
|
| Dimension A (profiled rail systems) |
230
mm |
| Dimension A1 (profiled rail systems) |
5
mm |
| Dimension D |
3
mm |
| Dimension D1 |
6
mm |
| Dimension E8 (profiled rail systems) |
205
mm |
| Dimension E8.1 (profiled rail systems) |
205
mm |
| Dimension E9 (profiled rail systems) |
38
mm |
| Dimension E9.1 (profiled rail systems) |
90
mm |
| Dimension H |
133
mm |
Description

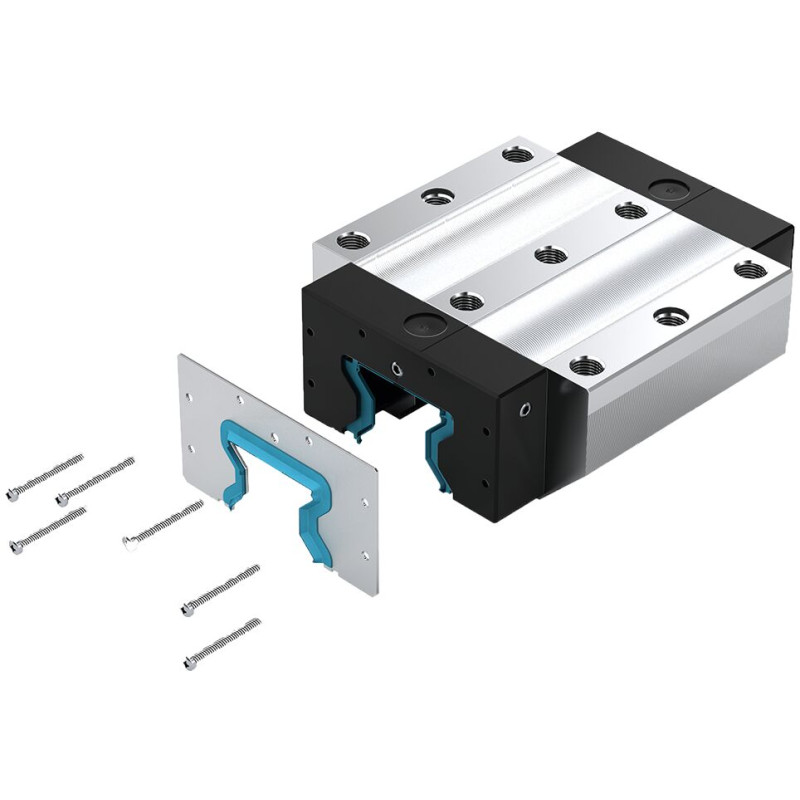

Front seal for roller rail systems
Size 125
Features
- Already integrated in RSHP (replacement only for first generation roller runner blocks)
- Material: Corrosion-resistant spring steel according to DIN EN 10088 with plastic seal
- Design: bright
