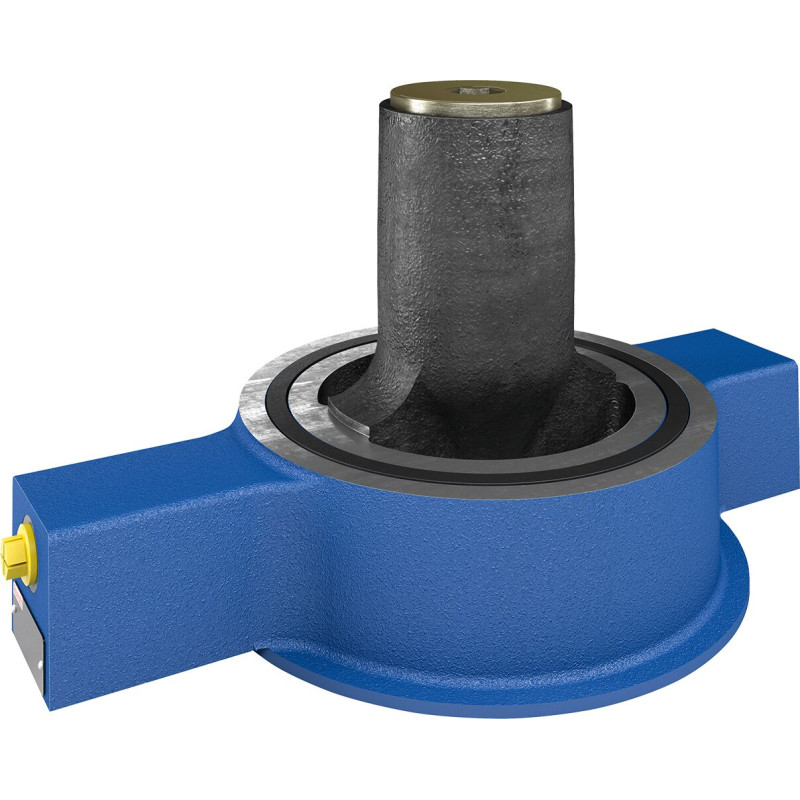

R901524300
ZSF32F1-1-1X/M/01D08

R901524300
  • Availability: on request
  • Weight: 3.58 KG
  • Part number: R901524300
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901524300
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 200 l/min
Net weight 3.58 kg
Operating pressure, max. 350 bar
Other properties
ECLASS_13_Classification 51-44-04-04
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Product family ZSF(W)
Seals NBR
Size 32
Spool symbol A → B
Type of actuation with hydraulic actuation
Type of connection Flange connection
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Features
  • Seat valve
  • with pre-decompression
  • Pipe thread according to ISO 228-1
DataSheet (1)
PDF Prefill valve (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
ZSF/ZSFW 32.-1X/
 R961007011
998 SPARE PART
DRV BC1-0,8
 R961012350
