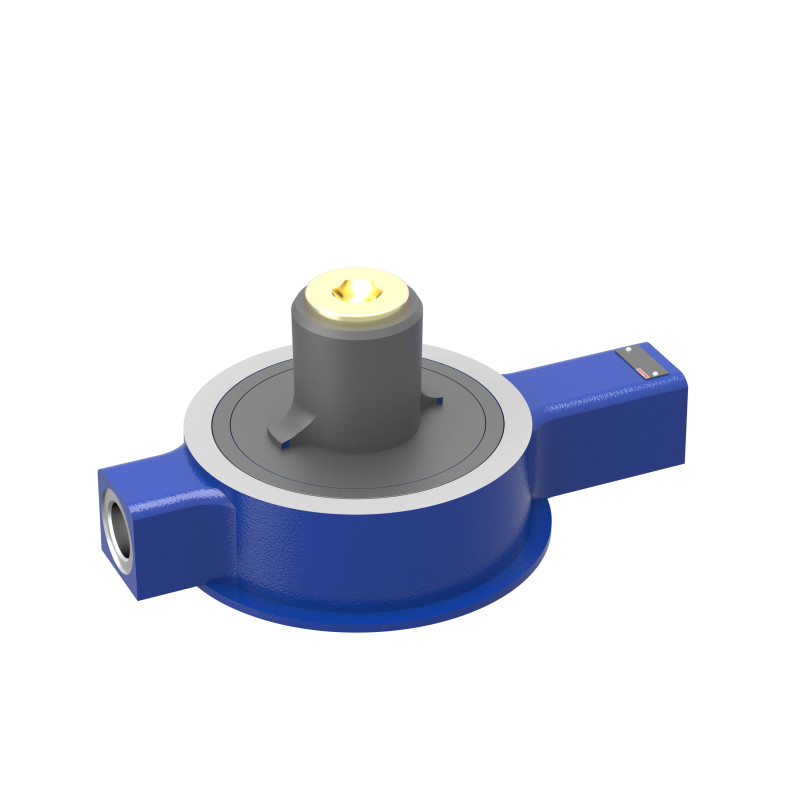

R901524304
ZSF100F0-1-1X/M/01D10

R901524304
  • Availability: on request
  • Weight: 14.70 KG
  • Part number: R901524304
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901524304
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 14.7 kg
Operating pressure, max. 350 bar
Max. flow 1900 l/min
Other properties
Connection diagram According to ISO 228-1
ECLASS_13_Classification 51-44-04-04
Product family ZSF(W)
Spool symbol A → B
Type of connection Sandwich plate
Size 100
Type of actuation with mechanical actuation
Number of ports 2
Number of switching positions 2
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Features
  • Seat valve
  • Pilot-operated
Manual (2)
PDF 472f764a-5bf5-4b93-87a6-9360c0070d4d_original (EN)
PDF c6e9e013-c7dd-4e4c-a8a7-d7057d8fece6_original (EN)
CAD (1)
File R901524304 (ALL)
DataSheet (1)
PDF Prefill valve (EN)
Pos Name Material Number
998 SPARE PART
DRV BC2-1,0
 R961013571
999 SEAL KIT
ZSF/ZSFW 100.-1X/
 R900782513
