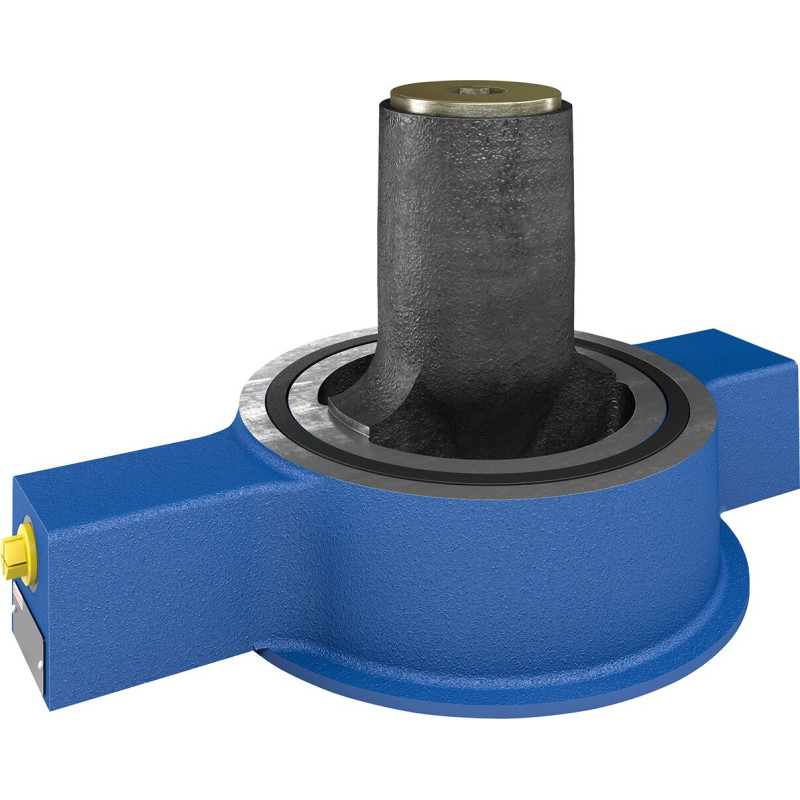

R901103033
ZSF 125 F0-1-2X/V/01D00

R901103033
  • Availability: on request
  • Weight: 24.21 KG
  • Part number: R901103033
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901103033
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 24.21 kg
Operating pressure, max. 350 bar
Max. flow 3000 l/min
Other properties
ECLASS_13_Classification 51-44-04-04
Product family ZSF(W)
Spool symbol A → B
Type of connection Flange connection
Size 125
Type of actuation with hydraulic actuation
Number of ports 2
Number of switching positions 2
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HDFR
Seals FKM
Features
  • Seat valve
  • without pre-decompression
Manual (2)
PDF 472f764a-5bf5-4b93-87a6-9360c0070d4d_original (EN)
PDF c6e9e013-c7dd-4e4c-a8a7-d7057d8fece6_original (EN)
DataSheet (1)
PDF Prefill valve (EN)
Pos Name Material Number
100 MODIFICATION SET
ZSF125-20->21
 R901179164
999 SEAL KIT
ZSF 125.-2X/V
 R961003140
