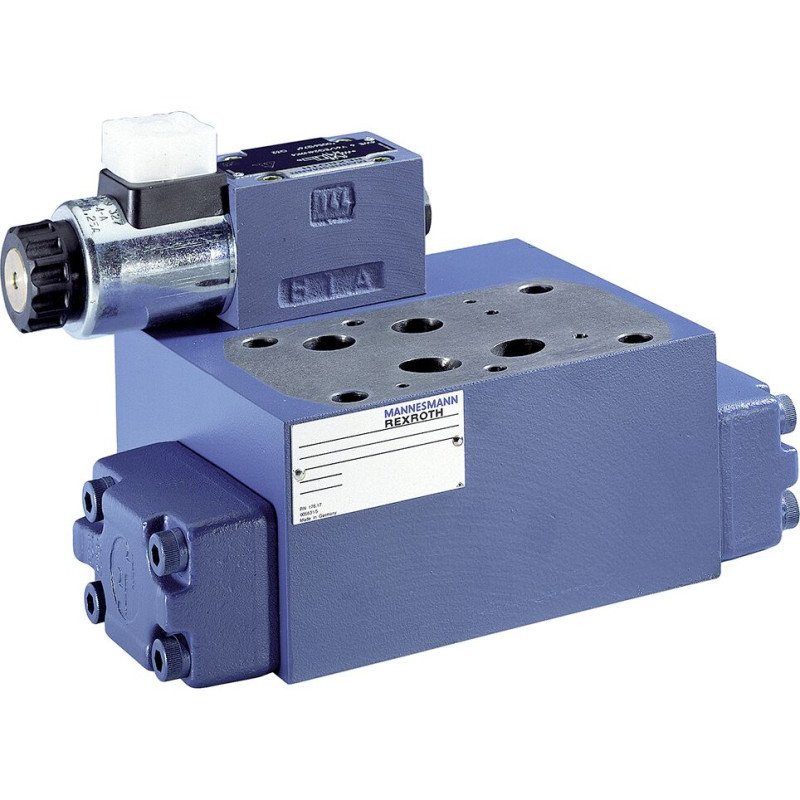

R901311155
Z4WEH16E63-5X/6EW230N9ETK4/B10

R901311155
  • Availability: on request
  • Weight: 15.18 KG
  • Part number: R901311155
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901311155
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 15.18 kg
Operating pressure, max. 315 bar
Max. flow 300 l/min
Other properties
Connection diagram ISO 4401-07-07-0-05
Product family Z.WEH16
ECLASS_13_Classification 51-44-05-03
Spool symbol Symbol E63
Type of connection Sandwich plate
Size 16
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 230 VAC 50/60Hz
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU
Conformity UKCA,CE
Hydraulic fluid HL,HLP,HETG
Seals NBR
Description

Industrial hydraulic valve in the medium performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Spool valve
  • Pilot-operated
  • Internal pilot oil supply, internal pilot oil return
  • With concealed auxiliary actuation
DataSheet (1)
PDF 4/2 and 4/3 directional shut-off valves, internally pilot operated, externally pilot operated (EN)
Manual (2)
PDF 472f764a-5bf5-4b93-87a6-9360c0070d4d_original (EN)
PDF ed2ac361-40c1-4b4a-93ab-ac6a36689f09_original (EN)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WE6Y6X/EW230N9K4/B10
 R900945301
998 SEAL KIT
WE 6.6X/E
 R900357573
999 SEAL KIT
Z4WH16.-5X/
 R961005320
