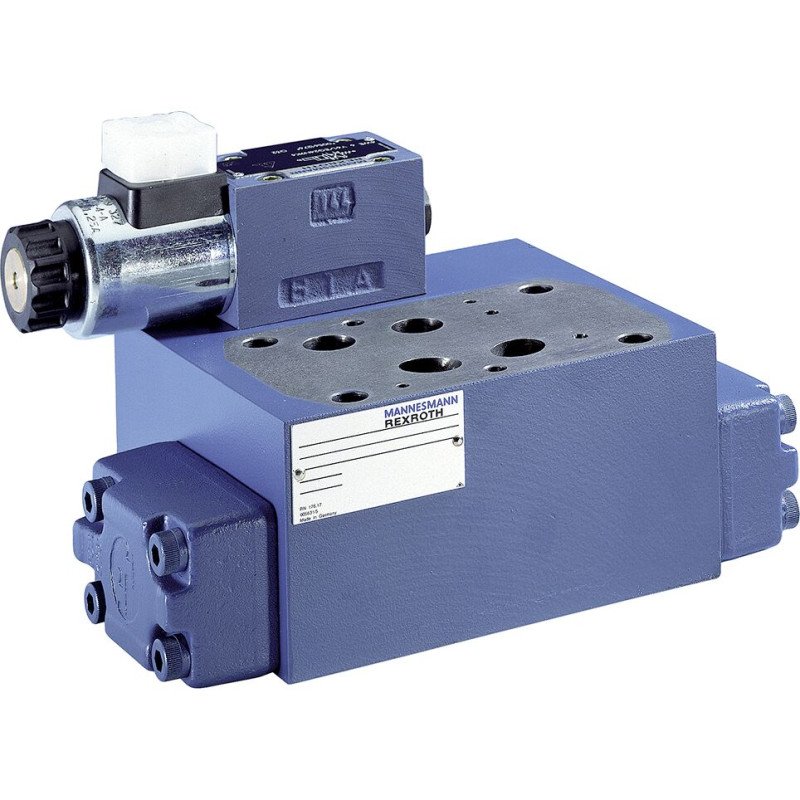

R901275995
Z4WEH16E63-5X/6EG24N9ETS2K4QMAG24/B10V

R901275995
  • Availability: on request
  • Weight: 16.67 KG
  • Part number: R901275995
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901275995
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 16.665 kg
Operating pressure, max. 315 bar
Max. flow 300 l/min
Other properties
Connection diagram ISO 4401-07-07-0-05
ECLASS_13_Classification 51-44-05-03
Product family Z.WEH16
Spool symbol Symbol E63
Type of connection Sandwich plate
Size 16
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HETG,HEPG,HEES
Seals FKM
Description

Industrial hydraulic valve in the medium performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Spool valve
  • Pilot-operated
  • Internal pilot oil supply, internal pilot oil return
  • With concealed auxiliary actuation
