Physical size and weight
| Net weight |
5.58
kg |
| Operating pressure, max. |
315
bar |
| Max. flow |
160
l/min |
Other properties
| Connection diagram |
ISO 4401-05-04-0-05
|
| ECLASS_13_Classification |
51-44-05-03
|
| Product family |
Z.WEH10
|
| Spool symbol |
Symbol E62
|
| Type of connection |
Sandwich plate
|
| Size |
10
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
3
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Hydraulic fluid |
HL,HLP,HETG
|
| Seals |
NBR
|
Description

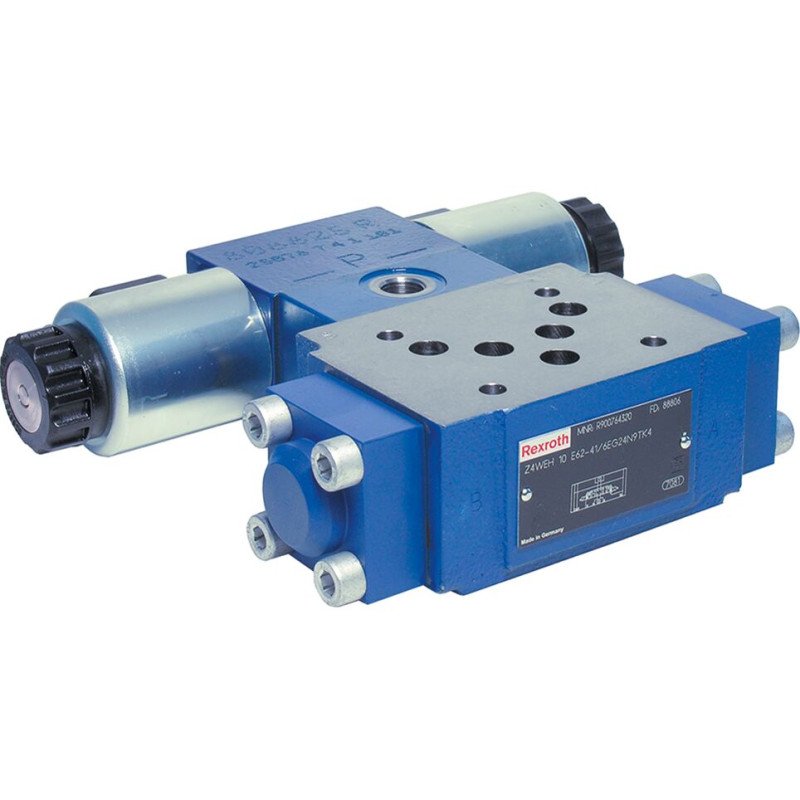

Industrial hydraulic valve in the medium performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Features
- Spool valve
- Pilot-operated
- External pilot oil supply, internal pilot oil return
- With concealed auxiliary actuation
