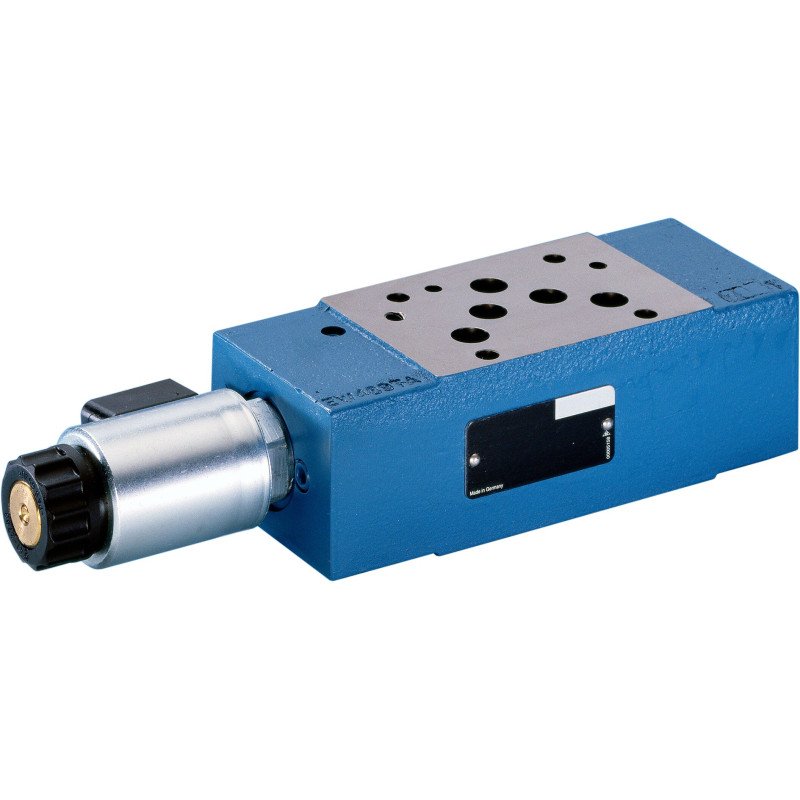

R901046900
Z4WEH10E51-5X/4KEG24N9ETK4/V

R901046900
  • Availability: on request
  • Weight: 3.58 KG
  • Part number: R901046900
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901046900
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.58 kg
Operating pressure, max. 315 bar
Max. flow 160 l/min
Other properties
Connection diagram ISO 4401-05-04-0-05
ECLASS_13_Classification 51-44-05-03
Spool symbol Symbol E51
Type of connection Sandwich plate
Size 10
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HETG,HEPG,HEES
Seals FKM
Description

Industrial hydraulic valve in the medium performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Spool valve
  • Pilot-operated
  • Internal pilot oil supply, internal pilot oil return
  • With concealed auxiliary actuation
Manual (3)
PDF 472f764a-5bf5-4b93-87a6-9360c0070d4d_original (EN)
PDF 4/2 and 4/3 directional shut-off valves, internally pilot operated, externally pilot operated (EN)
PDF f6d7c404-5824-4efc-bdcf-3484b32f880b_original (EN)
