Physical size and weight
| Max. flow |
160
l/min |
| Net weight |
8.2
kg |
| Operating pressure, max. |
315
bar |
Other properties
| Connection diagram |
ISO 6263
|
| ECLASS_13_Classification |
51-44-04-01
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Number of ports |
2
|
| Number of switching positions |
2
|
| Product family |
Z4S 16
|
| Seals |
NBR
|
| Size |
16
|
| Spool symbol |
A → B
|
| Type of actuation |
with mechanical actuation
|
| Type of connection |
Sandwich plate
|
Description

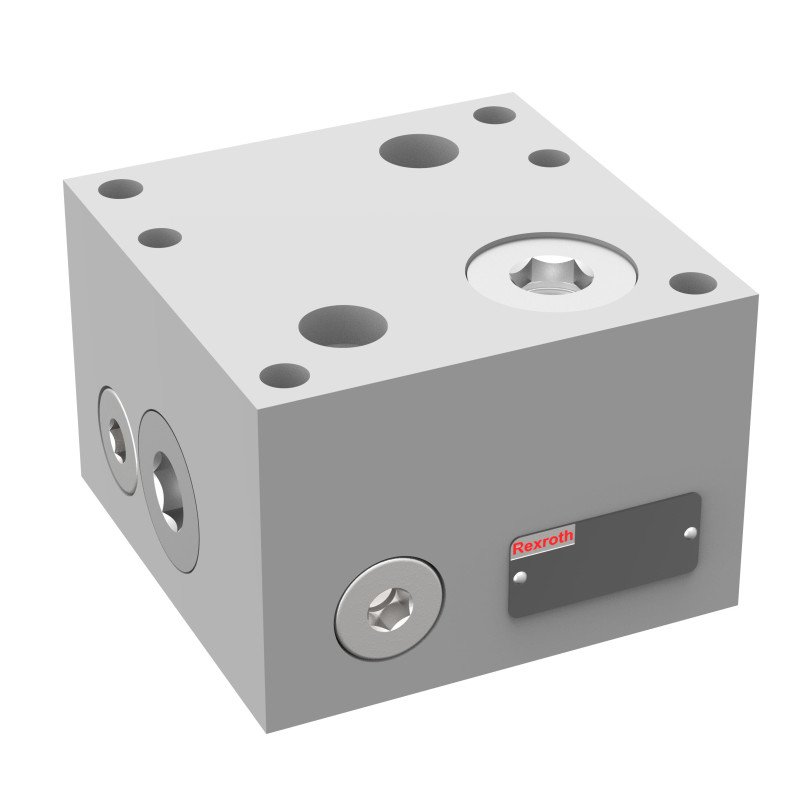

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol
Features
- Direct actuated
- Leakage-free blocking in channel A and B
- Cracking pressure 1.5 bar
