Physical size and weight
| Max. flow |
120
l/min |
| Net weight |
3.4
kg |
| Operating pressure, max. |
350
bar |
Other properties
| Conformity |
UKCA,CE
|
| Conformity |
UKCA – Electromagnetic compatibility (EMC) SI2016/1091,CE – Electromagnetic compatibility (EMC) directive 2014/30/EU
|
| Connection diagram |
ISO 4401-05-05-0-05
|
| Connectivity |
Analog, command value 0…10 V
|
| ECLASS_13_Classification |
51-45-02-02
|
| Electric connection description |
Connector, 7-pole (6 + PE) according to EN 175201-804
|
| Electrical connector |
Connector, 7-pole (6 + PE)
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Product family |
Z3DRE€
|
| Seals |
NBR
|
| Size |
10
|
| Spool symbol |
P2 → P1
|
| Supply voltage |
24 VDC
|
| Type of actuation |
Electrical with on-board electronics
|
| Type of connection |
Sandwich plate
|
| Valve ports number |
4
|
| Valve position number |
3
|
Description
Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
Features
- Spool valve
- Pilot-operated
- Pressure rating 200 bar
- Analog electronics
CAD (1)
DataSheet (1)

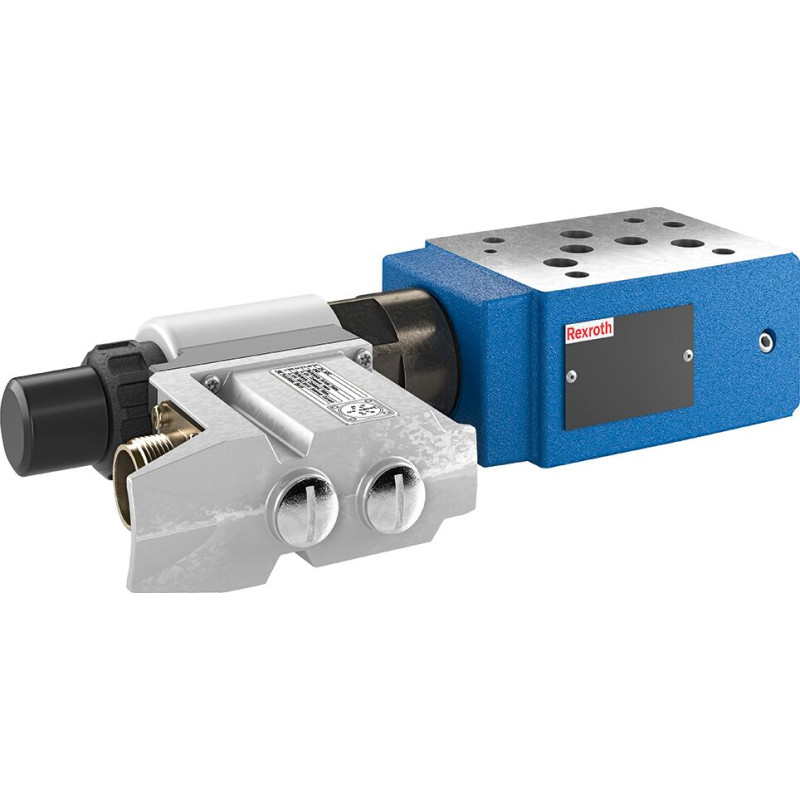

Proportional pressure reducing valve, pilot-operated
(EN)
|
