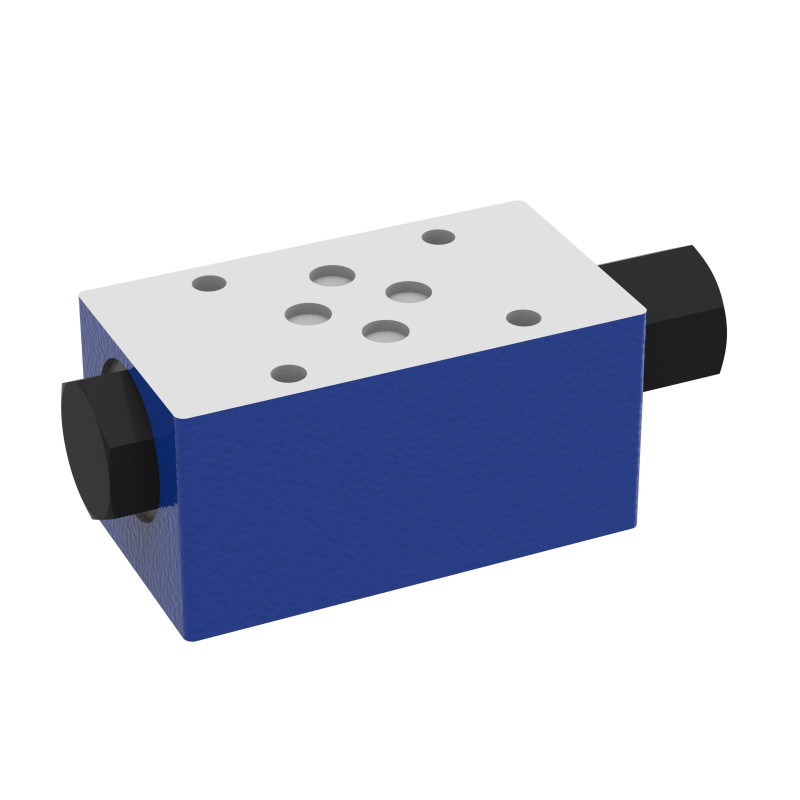

R901404993
Z2S6A2-6X/VSO150

R901404993
  • Availability: on request
  • Weight: 0.80 KG
  • Part number: R901404993
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901404993
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 80 l/min
Net weight 800 g
Operating pressure, max. 350 bar
Other properties
Connection diagram ISO 4401-03-02-0-05
ECLASS_13_Classification 51-44-04-01
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Product family Z2S6
Seals FKM
Size 6
Spool symbol A1 → A2
Type of actuation with mechanical actuation
Type of connection Sandwich plate
Valve ports number 4
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol

Features
  • Direct actuated
  • Leakage-free blocking in channel A
  • Cracking pressure 3 bar
  • With pre-opening and control open from channel P
CAD (1)
File R901404993 (ALL)
DataSheet (1)
PDF Check valve, pilot operated (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
Z2S6.-5X/6X/V
 R961000660
997 MODIFICATION SET
UMBAUSATZ Z2S 6-1-2-3-6X/
 R961005261
