Physical size and weight
| Max. flow |
300
l/min |
| Net weight |
6.743
kg |
| Operating pressure, max. |
315
bar |
Other properties
| Connection diagram |
ISO 4401-07-07-0-05
|
| ECLASS_13_Classification |
51-44-04-01
|
| Electric connection description |
0
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Product family |
Z2S16
|
| Seals |
NBR
|
| Size |
16
|
| Spool symbol |
B1 → B2
|
| Type of actuation |
with mechanical actuation
|
| Type of connection |
Sandwich plate
|
| Valve ports number |
4
|
| Valve position number |
2
|
Description

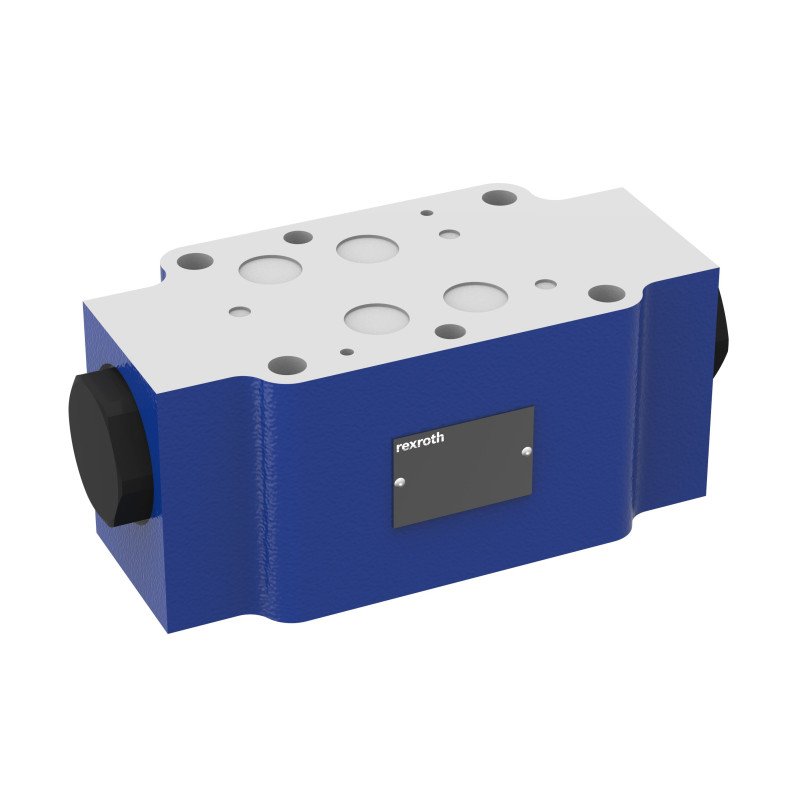

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol
Features
- Direct actuated
- Leakage-free blocking in channel B
- Cracking pressure 5 bar
