Physical size and weight
| Net weight |
2.655
kg |
| Operating pressure, max. |
350
bar |
| Max. flow |
160
l/min |
Other properties
| Connection diagram |
ISO 4401-05-04-0-05
|
| ECLASS_13_Classification |
51-44-04-01
|
| Product family |
Z2S10
|
| Spool symbol |
A1 → A2, B1 → B2
|
| Type of connection |
Sandwich plate
|
| Size |
10
|
| Type of actuation |
with mechanical actuation
|
| Number of ports |
5
|
| Number of switching positions |
2
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
|
| Seals |
FKM
|
Description

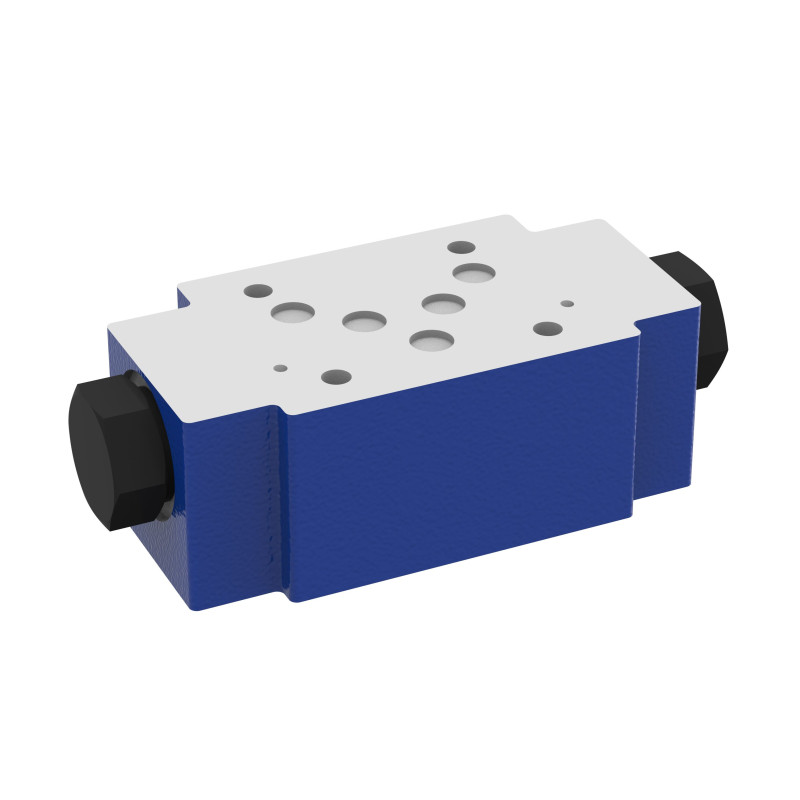

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol
Features
- Direct actuated
- Leakage-free blocking in channel A and B
- Cracking pressure 3 bar
- With pre-opening and control open from channel P
