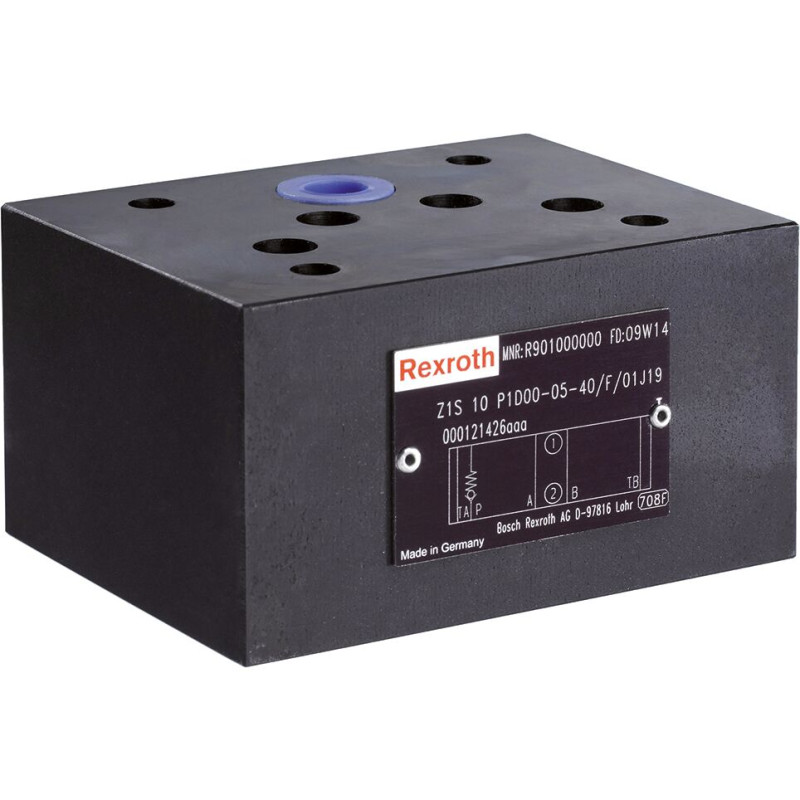

R901465069
Z1S10A05-2-4X/N

R901465069
  • Availability: on request
  • Weight: 2.25 KG
  • Part number: R901465069
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901465069
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 100 l/min
Net weight 2.25 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram ISO 4401-05-04-0-05
ECLASS_13_Classification 51-44-04-01
Product family Z1S10
Size 10
Spool symbol A1 → A2
Type of actuation with mechanical actuation
Type of connection Sandwich plate
Valve ports number 5
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol

Features
  • Direct actuated
  • Leakage-free blocking in channel A
  • Cracking pressure 0.5 bar
DataSheet (1)
PDF Check valve (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
997 ASSEMBLY TOOL
Z1S 10 A.-41/
 R901182853
999 SEAL KIT
10B-MR/RN 2FACH
 R961001132
998 REPAIR KIT
Z1S10.-4X/
 R961005903
