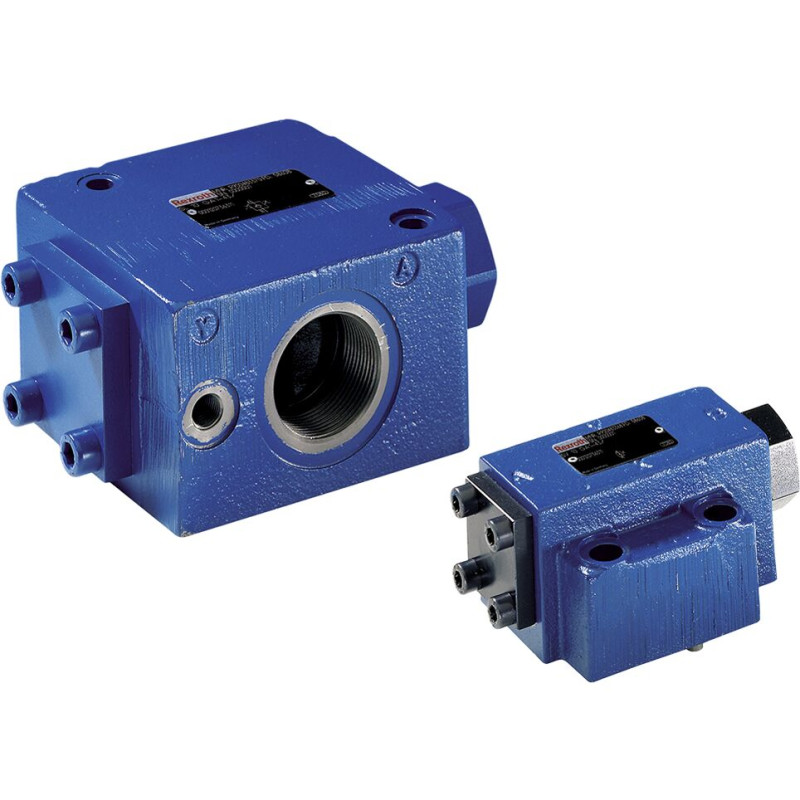

R901426830
SV30PB3-4X/QMG24M

R901426830
  • Availability: on request
  • Weight: 7.94 KG
  • Part number: R901426830
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901426830
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 550 l/min
Net weight 7.94 kg
Operating pressure, max. 315 bar
Other properties
Connection diagram ISO 5781-09-13-0-16
ECLASS_13_Classification 51-44-04-01
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Product family SV/SL10..30
Seals NBR
Size 32
Spool symbol A → B
Type of actuation with mechanical actuation
Type of connection Subplate mounting
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol.

Features
  • Pilot-operated
  • Leakage-free blocking of one actuator port
  • Cracking pressure 8 bar
  • Internal pilot oil return
  • With spool position monitoring
CAD (1)
File R901426830 (ALL)
DataSheet (2)
PDF Check valve, pilot operated (EN)
PDF Reliability characteristics MTTFD regarding the functional safety according to EN ISO 13849 (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
