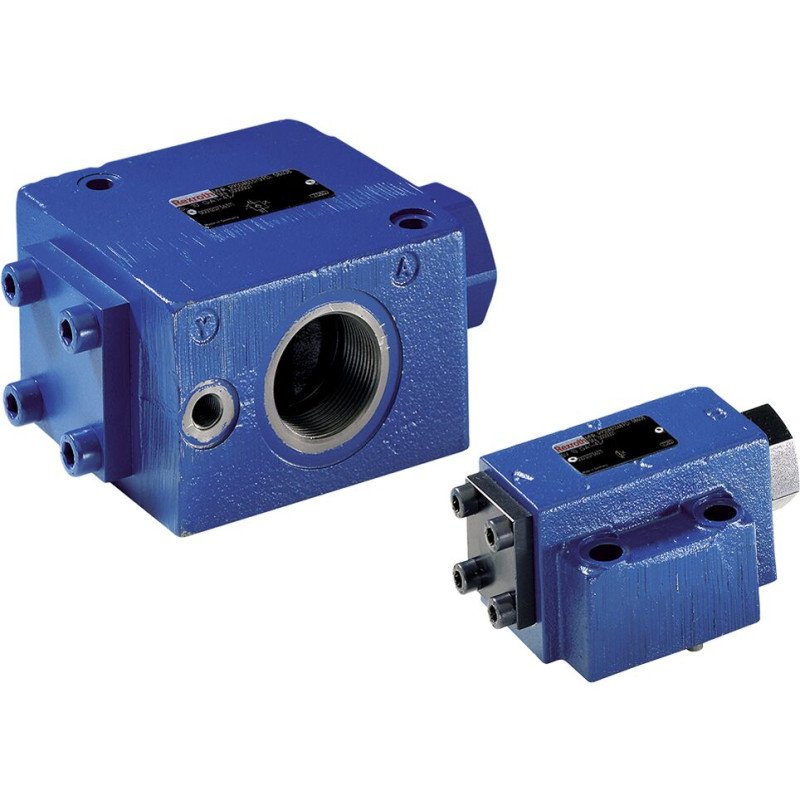

R900500095
SL30PA1-4X/V

R900500095
  • Availability: on request
  • Weight: 7.76 KG
  • Part number: R900500095
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

R900500095
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 550 l/min
Net weight 7.76 kg
Operating pressure, max. 315 bar
Other properties
Connection diagram ISO 5781-09-13-0-16
ECLASS_13_Classification 51-44-04-01
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEPG,HEES,HFDU,HFDR
Product family SV/SL10..30
Seals FKM
Size 32
Spool symbol A → B
Type of actuation with mechanical actuation
Type of connection Subplate mounting
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol.

Features
  • Pilot-operated
  • Leakage-free blocking of one actuator port
  • Cracking pressure 2.5 bar
  • External pilot oil return
CAD (1)
File R900500095 (ALL)
DataSheet (2)
PDF Check valve, pilot operated (EN)
PDF Reliability characteristics MTTFD regarding the functional safety according to EN ISO 13849 (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
SV/SL30G/P.-4X/V
 R961000678
998 SPARE PART
EINSATZ SV/SL30.A1-4X/V
 R961008435
