Physical size and weight
| Max. flow |
550
l/min |
| Net weight |
9.6
kg |
| Operating pressure, max. |
315
bar |
Other properties
| Conformity |
DGUV
|
| Conformity description |
DGUV Test – Test certificate HM 220197-2022,DGUV Test – Type examination certificate HSM 20023-2020
|
| Connection diagram |
ISO 5781-09-13-0-16
|
| ECLASS_13_Classification |
51-44-04-01
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620, Union: Carbide HP5046)
|
| Number of ports |
4
|
| Number of switching positions |
2
|
| Product family |
SV/SL10..30
|
| Seals |
NBR
|
| Size |
30
|
| Spool symbol |
A → B
|
| Type of actuation |
with hydraulic actuation
|
| Type of connection |
Threaded connection
|
Description

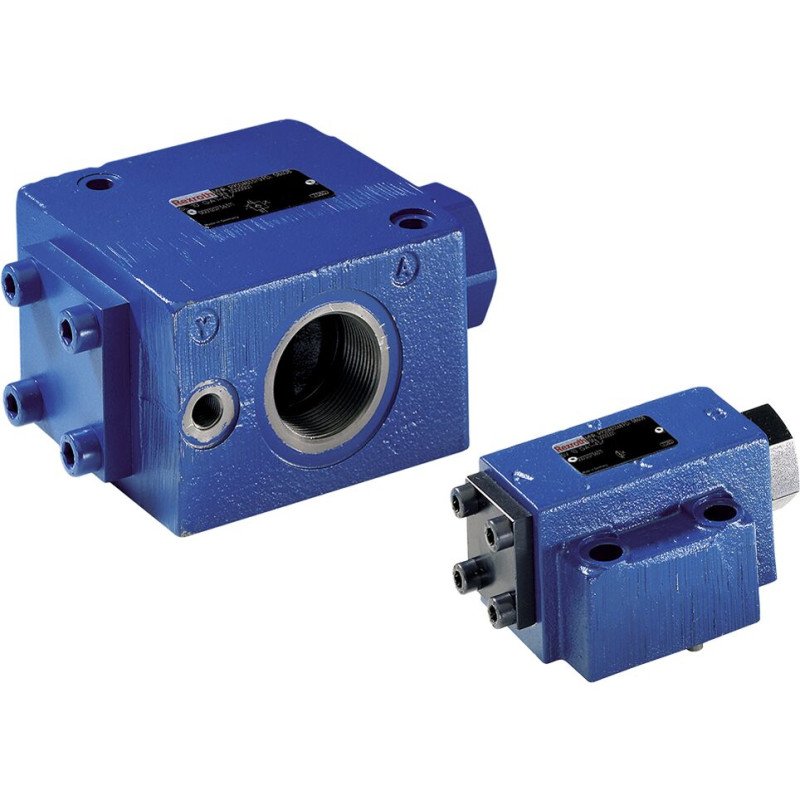

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Features
- Check valve
- Direct actuated
- External pilot oil return
