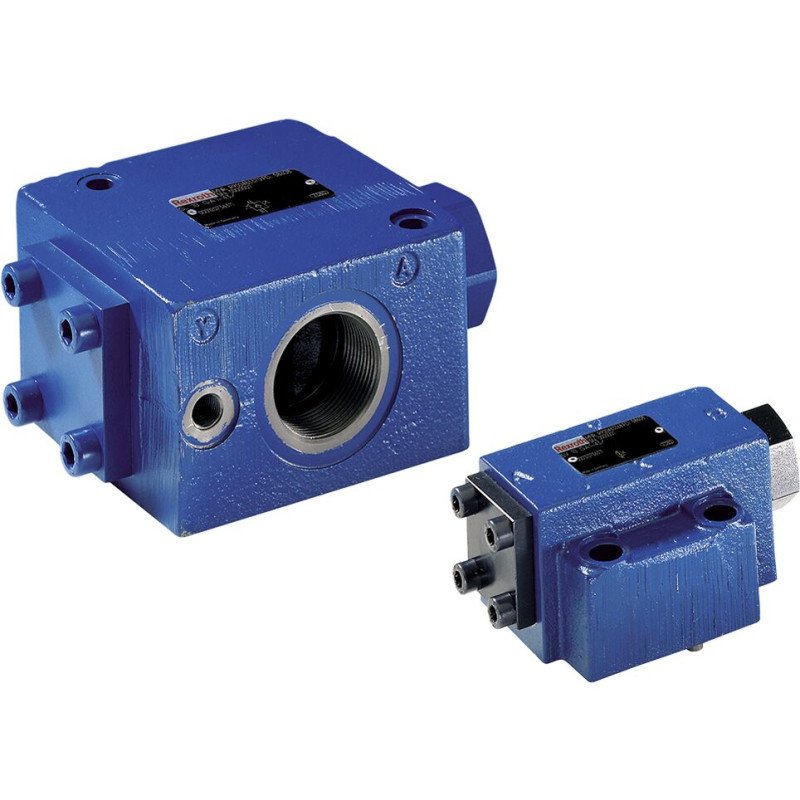

R900502193
SL30GB2-4X/

R900502193
  • Availability: on request
  • Weight: 9.57 KG
  • Part number: R900502193
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

R900502193
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 550 l/min
Net weight 9.565 kg
Operating pressure, max. 315 bar
Other properties
Connection diagram ISO 5781-09-13-0-16
ECLASS_13_Classification 51-44-04-01
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620, Union: Carbide HP5046)
Product family SV/SL10..30
Seals NBR
Size 30
Spool symbol A → B
Type of actuation with hydraulic actuation
Type of connection Threaded connection
Valve ports number 4
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Check valve
  • Direct actuated
  • External pilot oil return
CAD (1)
File R900502193 (ALL)
DataSheet (2)
PDF Check valve, pilot operated (EN)
PDF Reliability characteristics MTTFD regarding the functional safety according to EN ISO 13849 (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
SV/SL30G/P.-4X/
 R961000677
998 SPARE PART
EINSATZ SV/SL30.B2-4X/
 R961008440
