Physical size and weight
| Max. flow |
350
l/min |
| Net weight |
5
kg |
| Operating pressure, max. |
315
bar |
Other properties
| Conformity |
DGUV
|
| Conformity description |
DGUV Test – Test certificate HM 220197-2022,DGUV Test – Type examination certificate HSM 20023-2020
|
| Connection diagram |
ISO 5781-08-10-0-16
|
| ECLASS_13_Classification |
51-44-04-01
|
| Electrical connection description |
Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101
|
| Electrical connector |
Connector, 4-pole, M12 x 1, coding A
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Number of ports |
2
|
| Number of switching positions |
2
|
| Product family |
SV/SL10..30
|
| Seals |
NBR
|
| Size |
20
|
| Spool symbol |
A → B
|
| Supply voltage |
24 VDC
|
| Type of actuation |
with mechanical actuation
|
| Type of connection |
Subplate mounting
|
Description

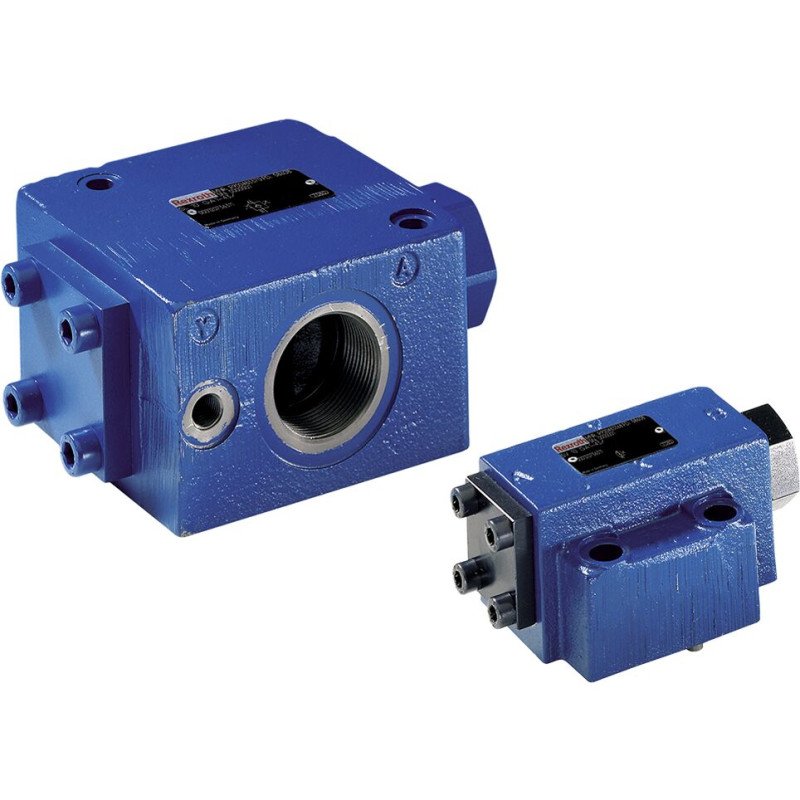

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol.
Features
- Pilot-operated
- Leakage-free blocking of one actuator port
- Cracking pressure 7.5 bar
- External pilot oil return
- With spool position monitoring
