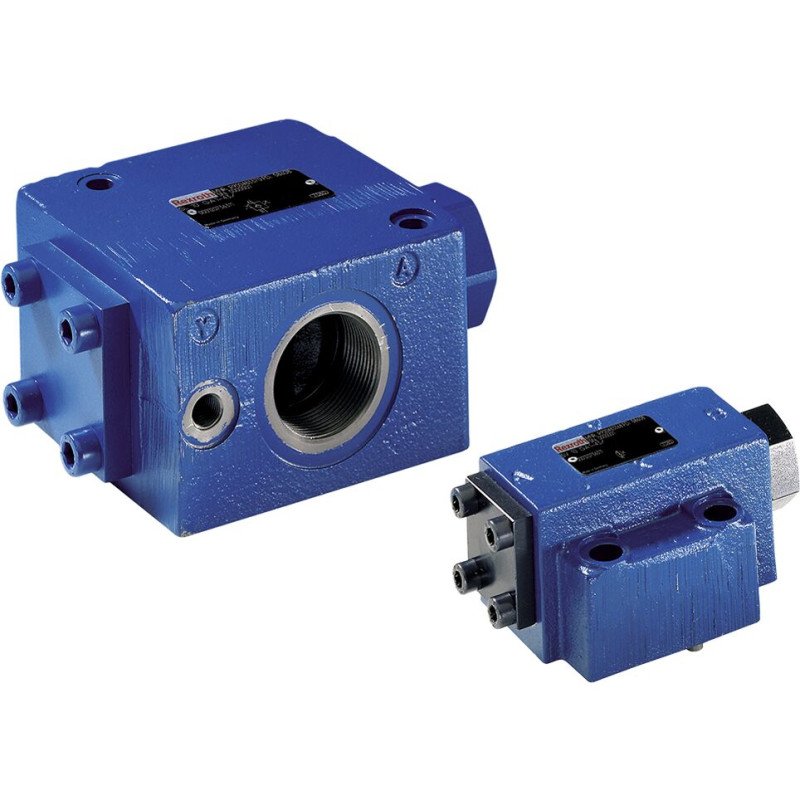

R901533729
SL20PB2-4X/J3

R901533729
  • Availability: on request
  • Weight: 4.74 KG
  • Part number: R901533729
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

R901533729
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 350 l/min
Net weight 4.74 kg
Operating pressure, max. 315 bar
Other properties
Connection diagram ISO 5781-08-10-0-16
ECLASS_13_Classification 51-44-04-01
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Product family SV/SL10..30
Seals NBR
Size 20
Spool symbol A → B
Type of actuation with mechanical actuation
Type of connection Subplate mounting
Valve ports number 2
Valve position number 2
Description

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow according to the hydraulic symbol.

Features
  • Pilot-operated
  • Leakage-free blocking of one actuator port
  • Cracking pressure 5 bar
  • External pilot oil return
  • Improved corrosion protection
DataSheet (2)
PDF Check valve, pilot operated (EN)
PDF Reliability characteristics MTTFD regarding the functional safety according to EN ISO 13849 (EN)
OperatingInstructions (1)
PDF Hydraulic valves and hydroelectric pressure switches (EN)
Pos Name Material Number
999 SEAL KIT
SV/SL20G/P.-4X/
 R961000673
