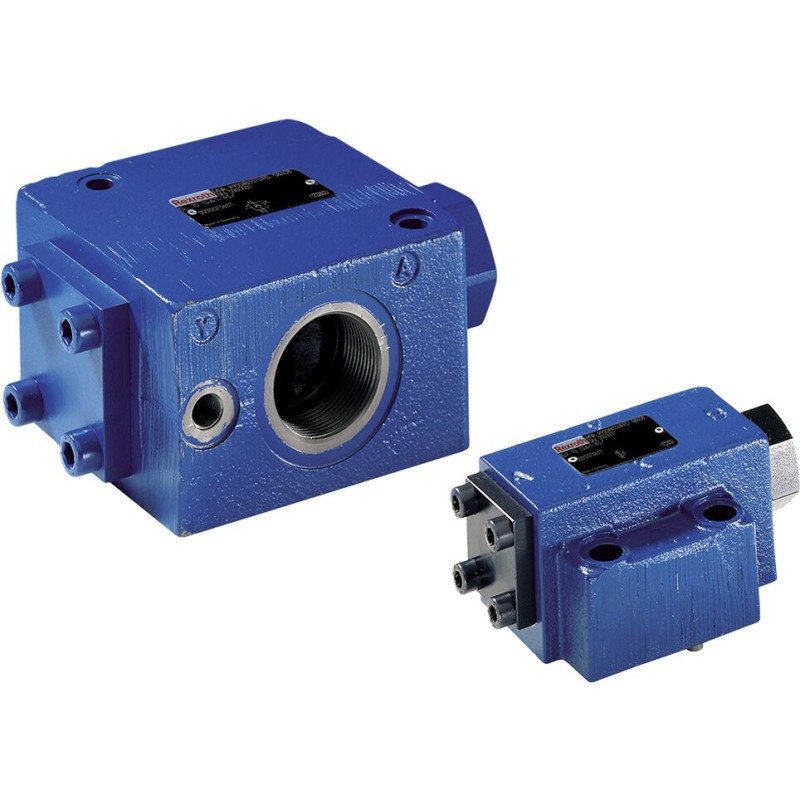

R900501547
SL20PA1-4X/V

R900501547
  • Availability: on request
  • Weight: 4.76 KG
  • Part number: R900501547
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

R900501547
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 4.76 kg
Operating pressure, max. 315 bar
Max. flow 350 l/min
Other properties
Connection diagram ISO 5781-08-10-0-16
ECLASS_13_Classification 51-44-04-01
Product family SV/SL10..30
Spool symbol A → B
Type of connection Subplate mounting
Size 20
Type of actuation with mechanical actuation
Number of ports 2
Number of switching positions 2
Supply voltage 24 VDC
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEPG,HEES,HFDU,HFDR
Seals FKM
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Pilot-operated
  • Leakage-free blocking of one actuator port
  • Cracking pressure 2.5 bar
  • External pilot oil return
Manual (2)
PDF 472f764a-5bf5-4b93-87a6-9360c0070d4d_original (EN)
PDF Check valve, pilot operated (EN)
CAD (1)
File R900501547 (ALL)
DataSheet (1)
PDF Reliability characteristics MTTFD regarding the functional safety according to EN ISO 13849 (EN)
Pos Name Material Number
998 SPARE PART
EINSATZ SV/SL20.A1-4X/V
 R961008419
999 SEAL KIT
SV/SL20G/P.-4X/V
 R961000674
