Physical size and weight
| Max. flow |
350
l/min |
| Net weight |
5.557
kg |
| Operating pressure, max. |
315
bar |
Other properties
| Connection diagram |
ISO 5781-08-10-0-16
|
| ECLASS_13_Classification |
51-44-04-01
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HEPG,HEES,HFDU,HFDR
|
| Number of ports |
4
|
| Number of switching positions |
2
|
| Product family |
SV/SL10..30
|
| Seals |
FKM
|
| Size |
20
|
| Spool symbol |
A → B
|
| Type of actuation |
with hydraulic actuation
|
| Type of connection |
Threaded connection
|
Description

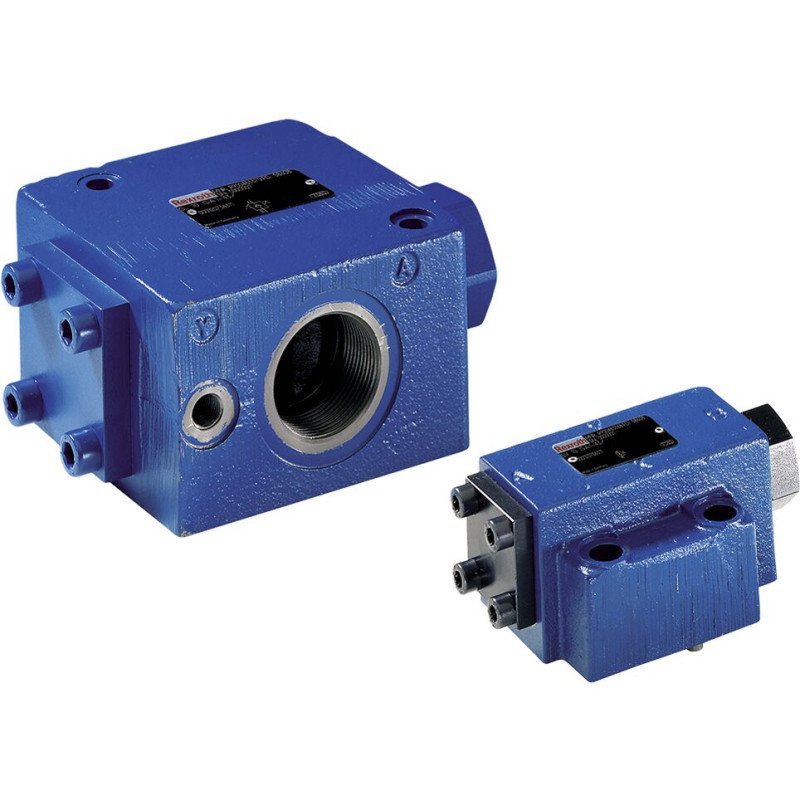

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Features
- Check valve
- Direct actuated
- External pilot oil return
