Physical size and weight
| Net weight |
0.665
kg |
| Operating pressure, max. |
450
bar |
| Max. flow |
150
l/min |
Other properties
| Connection diagram |
Pipe thread “M” according to ISO 261
|
| ECLASS_13_Classification |
51-44-04-01
|
| Product family |
S.A
|
| Spool symbol |
A → B
|
| Type of connection |
Threaded connection
|
| Size |
15
|
| Type of actuation |
with mechanical actuation
|
| Number of ports |
2
|
| Number of switching positions |
2
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU (glycol base),HFDU (ester base),HFC (Fuchs: Hydrotherm 46M, Petrofer: Ultra Safe 620)
|
| Seals |
NBR
|
Description

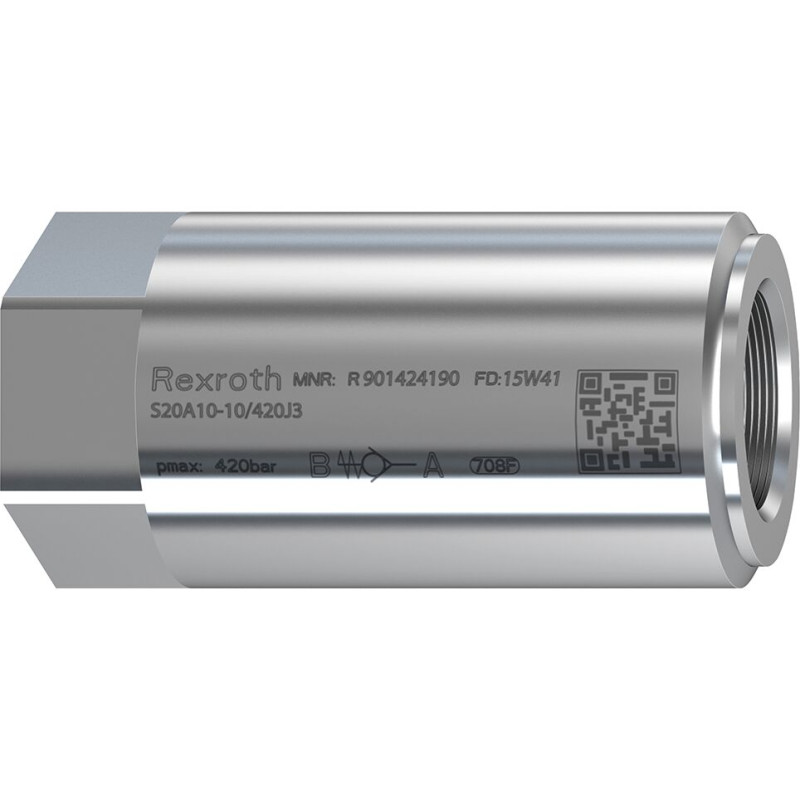

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Features
- Check valve
- Direct actuated
- Cracking pressure 0.5 bar
- Improved corrosion protection
