Physical size and weight
| Net weight |
2.5
kg |
| Operating pressure, max. |
420
bar |
| Max. flow |
40
l/min |
Other properties
| Connection diagram |
ISO 4401-05-04-0-05
|
| ECLASS_13_Classification |
51-44-01-01
|
| Product family |
M-.SEW10
|
| Spool symbol |
Symbol C
|
| Type of connection |
Subplate mounting
|
| Size |
10
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
3
|
| Number of switching positions |
2
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
|
| Seals |
FKM
|
Description

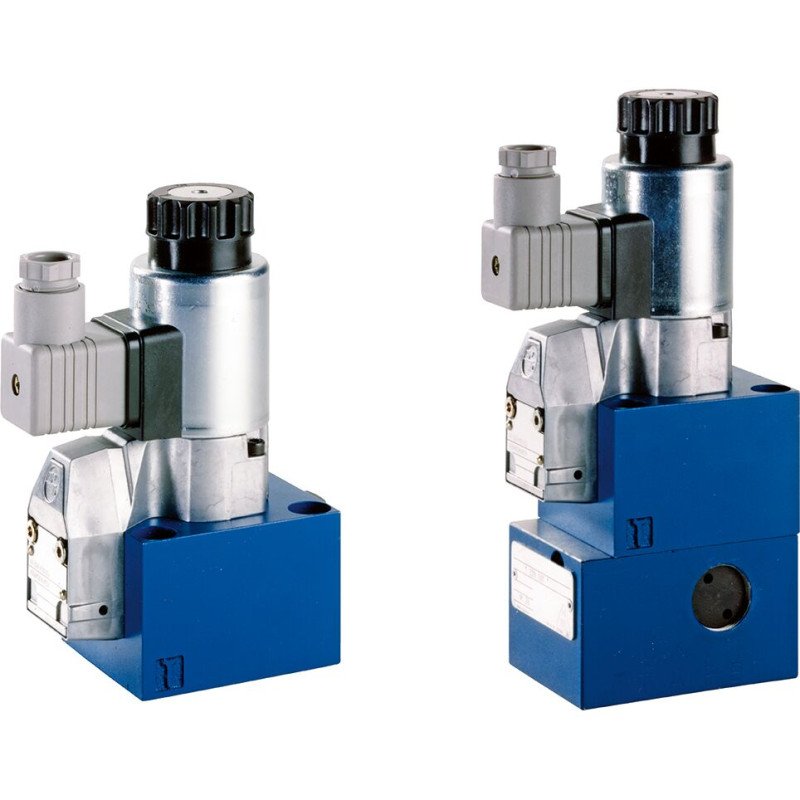

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Features
- Seat valve
- Direct actuated
- Safe switching also with longer standstill periods under pressure
