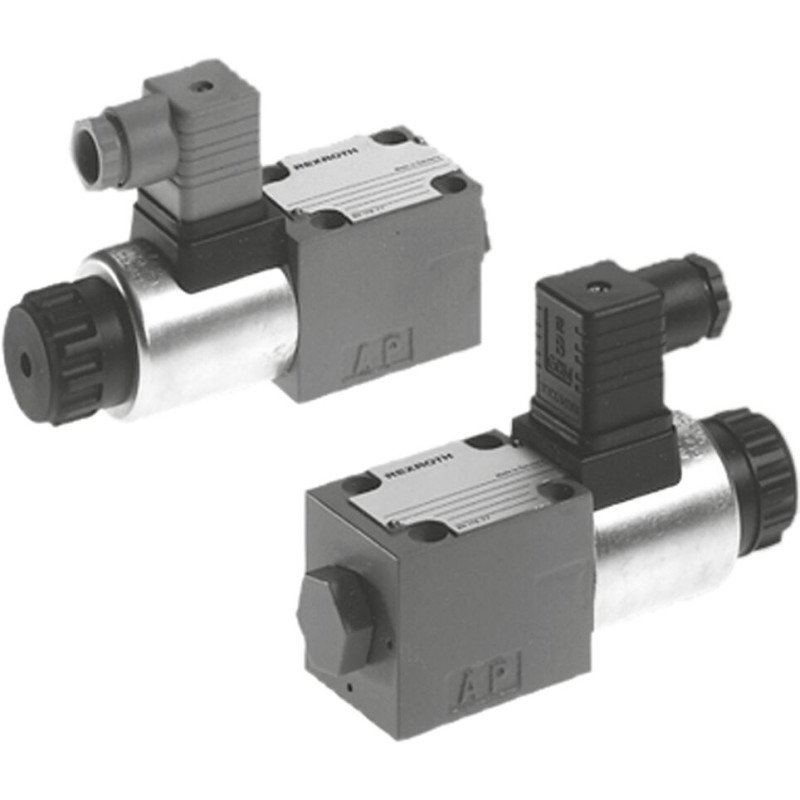

R901283780
M-2SED6PK1X/350CG205N9K4QMBG24

R901283780
  • Availability: on request
  • Weight: 1.49 KG
  • Part number: R901283780
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901283780
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.49 kg
Operating pressure, max. 350 bar
Max. flow 25 l/min
Other properties
Connection diagram ISO 4401-03-02-0-05
Product family M-.SED6
ECLASS_13_Classification 51-44-01-01
Spool symbol Symbol PK
Type of connection Subplate mounting
Size 6
Type of actuation with solenoid actuation
Number of ports 2
Number of switching positions 2
Supply voltage 205 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU
Conformity UKCA,CE
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Seat valve
  • Direct actuated
  • Safe switching also with longer standstill periods under pressure
Manual (3)
PDF 472f764a-5bf5-4b93-87a6-9360c0070d4d_original (EN)
PDF 2/2, 3/2 and 4/2 directional seat valve with solenoid actuation (EN)
PDF On/off valves with spool position monitoring (EN)
Name Material Number
3P Z4 M GR SPEZ. R901017010
3P Z4 M SW SPEZ R901017011
3P Z5L M 12-240V SPEZ R901017022
