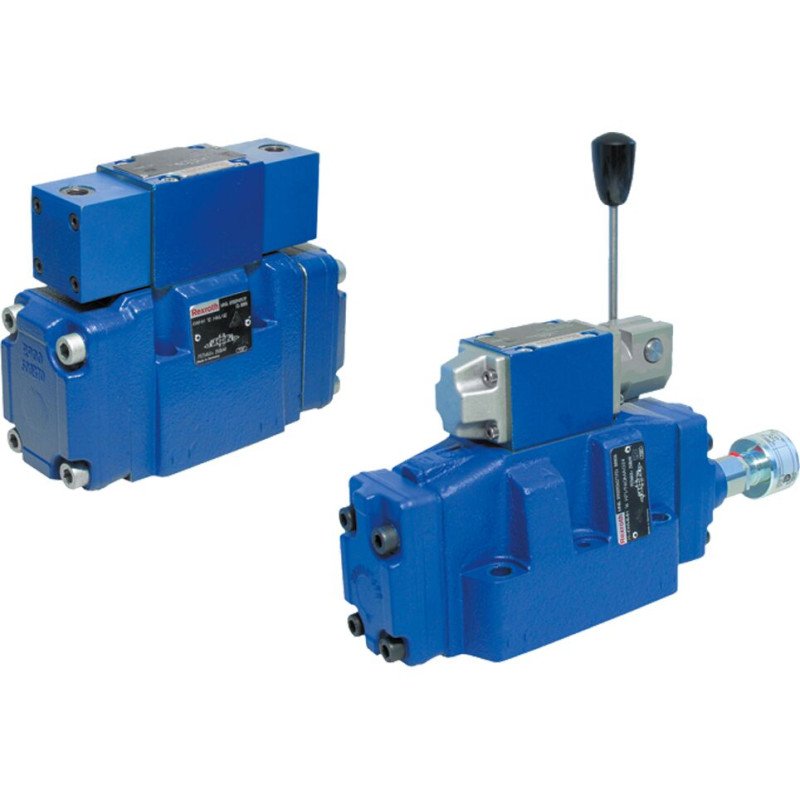

R901505781
H-4WMMH25E6X/F6S2

R901505781
  • Availability: on request
  • Weight: 17.53 KG
  • Part number: R901505781
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901505781
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 17.525 kg
Operating pressure, max. 350 bar
Max. flow 700 l/min
Other properties
Connection diagram ISO 4401-08-08-0-05
ECLASS_13_Classification 51-44-01-02
Product family (H-).W..H
Spool symbol Symbol E
Type of connection Subplate mounting
Size 25
Type of actuation with manual actuation
Number of ports 4
Number of switching positions 3
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HETG
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Spool valve
  • Pilot-operated
  • External pilot oil supply, external pilot oil return
Manual (3)
PDF a7f1e739-bd43-4c15-8f0f-d483d3bc6cb2_original (EN)
PDF b2c1fc09-698f-489e-8ab4-58b604a751a4_original (EN)
PDF R901505781 (EN)
CAD (3)
File R901501045 (ALL)
File LEFT(G128,10) (ALL)
File R901131448 (ALL)
Pos Name Material Number
60 THROTTLE CHECK VALVE
Z2FS6-2-4X/1Q
 R900481621
63 DIRECTIONAL SPOOL VALVE
4WMM6J5X/F
 R900466583
997 SEAL KIT
Z2FS6.-4X/
 R900899023
998 SEAL KIT
WMM 6.5X/
 R900357586
999 SEAL KIT
WH 25.5X/6X/
 R900309827
