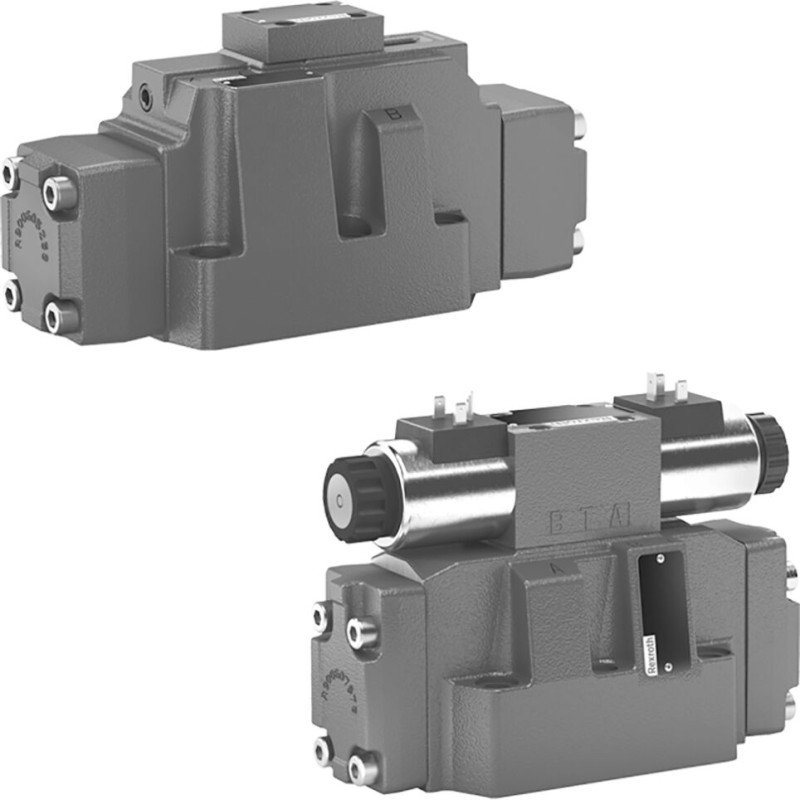

R901578664
H-4WH32U6X/

R901578664
  • Availability: on request
  • Weight: 36.86 KG
  • Part number: R901578664
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901578664
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 36.861 kg
Operating pressure, max. 350 bar
Max. flow 680 l/min
Other properties
Connection diagram ISO 4401-10-09-0-05
ECLASS_13_Classification 51-44-01-02
Product family H-4W.H..
Spool symbol Symbol U
Type of connection Subplate mounting
Size 32
Type of actuation with hydraulic actuation
Number of ports 4
Number of switching positions 3
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Manual (2)
PDF R901578664 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
999 SEAL KIT
WH 32.5X/6X/
 R900309829
