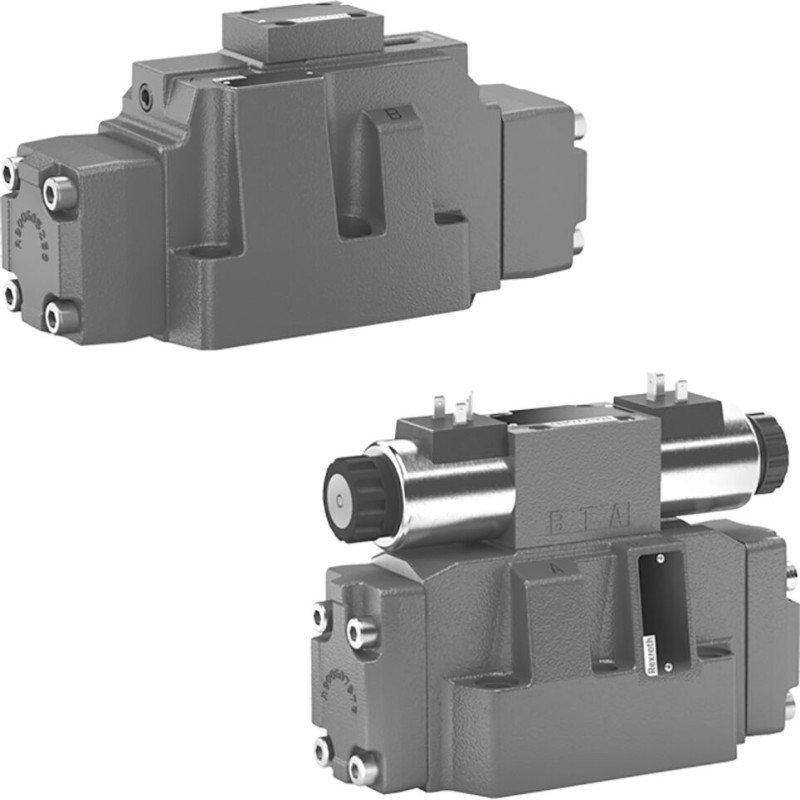

R901459948
H-4WEH25PA6X/6EG24N9K4/V

R901459948
  • Availability: on request
  • Weight: 17.50 KG
  • Part number: R901459948
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901459948
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 17.5 kg
Operating pressure, max. 350 bar
Max. flow 650 l/min
Other properties
Connection diagram ISO 4401-08-08-0-05
ECLASS_13_Classification 51-44-01-02
Product family H-4W.H..
Spool symbol Symbol PA
Type of connection Subplate mounting
Size 25
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HDFR
Seals FKM
Features
  • Directional on/off valve
  • Pilot-operated
  • External pilot oil supply, external pilot oil return
  • without position switch
  • With concealed auxiliary actuation
Manual (2)
PDF R901459948 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WE6JA6X/EG24N9K4/V
 R900554557
998 SEAL KIT
WE 6.6X/E/V
 R900357574
999 SEAL KIT
WH 25.5X/6X/V
 R900309826
