R901277184

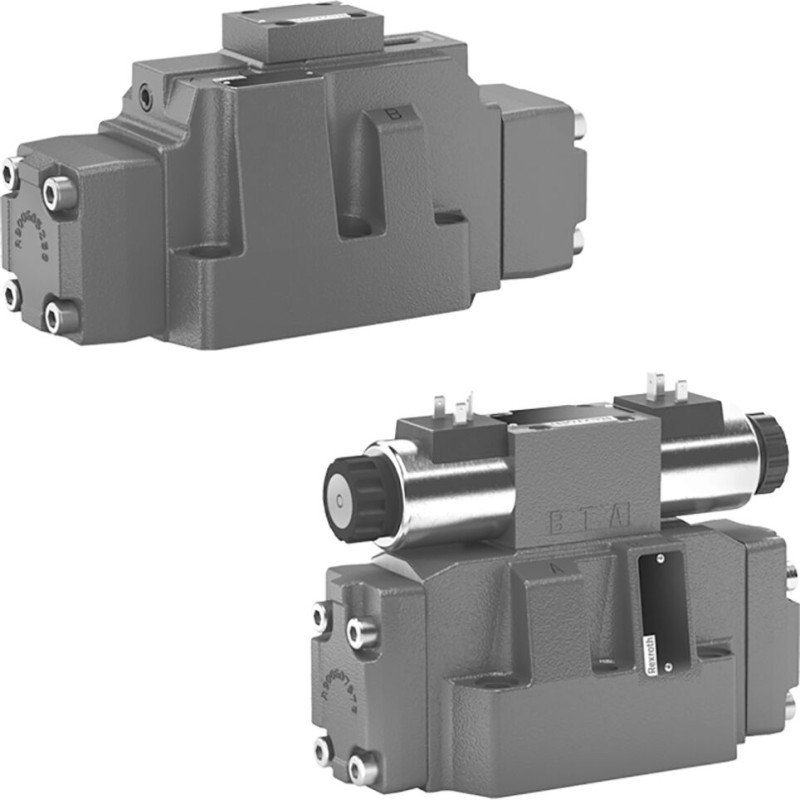

H-4WEH25HD6X/OF6EW110N9K4/V

R901277184
  • Availability: on request
  • Weight: 17.32 KG
  • Part number: R901277184
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901277184
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 17.32 kg
Operating pressure, max. 350 bar
Max. flow 700 l/min
Other properties
Connection diagram ISO 4401-08-08-0-05
Product family H-4W.H..
ECLASS_13_Classification 51-44-01-02
Spool symbol Symbol D
Type of connection Subplate mounting
Size 25
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 110…120 VAC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU
Conformity UKCA,CE
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Seals FKM
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

Features
  • Spool valve
  • Pilot-operated
  • External pilot oil supply, external pilot oil return
Manual (2)
PDF R901277184 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WE6D6X/OFEW110N9K4/V
 R900921614
998 SEAL KIT
WE 6.6X/E/V
 R900357574
999 SEAL KIT
WH 25.5X/6X/V
 R900309826
Name Material Number
3P Z4 M GR SPEZ. R901017010
3P Z4 M SW SPEZ R901017011
3P Z5L M 12-240V SPEZ R901017022
