Physical size and weight
| Net weight |
18.46
kg |
| Operating pressure, max. |
350
bar |
| Max. flow |
700
l/min |
Other properties
| Connection diagram |
ISO 4401-08-08-0-05
|
| Product family |
H-4W.H..
|
| ECLASS_13_Classification |
51-44-01-02
|
| Spool symbol |
Symbol D
|
| Type of connection |
Subplate mounting
|
| Size |
25
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
2
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
|
| Seals |
FKM
|
Description

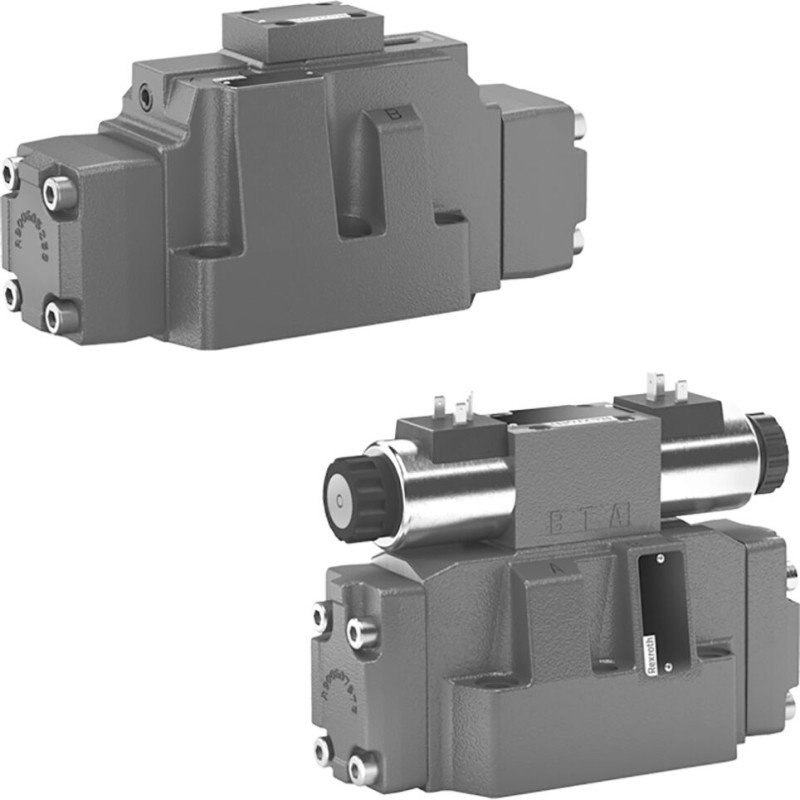

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Features
- Spool valve
- Pilot-operated
- Internal pilot oil supply, external pilot oil return
Manual (2)
R901147362
(EN)
|
Sign in
|
|
21ce2475-6107-4166-afe3-6d9295236a8e_original
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 63 |
DIRECTIONAL SPOOL VALVE
4WE6D6X/OFEG24N9K4/B08V |
R901147438
|
| 996 |
SEAL KIT
ZDR 6 DP0-4X/.YMV W80 |
R961000195
|
| 998 |
SEAL KIT
WE 6.6X/E/V |
R900357574
|
| 999 |
SEAL KIT
WH 25.5X/6X/V |
R900309826
|
| 9990 |
PRESSURE RED.VALVE INTERMEDIATE PLATE
ZDR 6 DP0-4X/40YMV W80 *ET |
R961014068
|
