Physical size and weight
| Net weight |
17.52
kg |
| Operating pressure, max. |
350
bar |
| Max. flow |
650
l/min |
Other properties
| Connection diagram |
ISO 4401-08-08-0-05
|
| ECLASS_13_Classification |
51-44-01-02
|
| Product family |
H-4W.H..
|
| Spool symbol |
Symbol EA
|
| Type of connection |
Subplate mounting
|
| Size |
25
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
2
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Seals |
NBR
|
Description

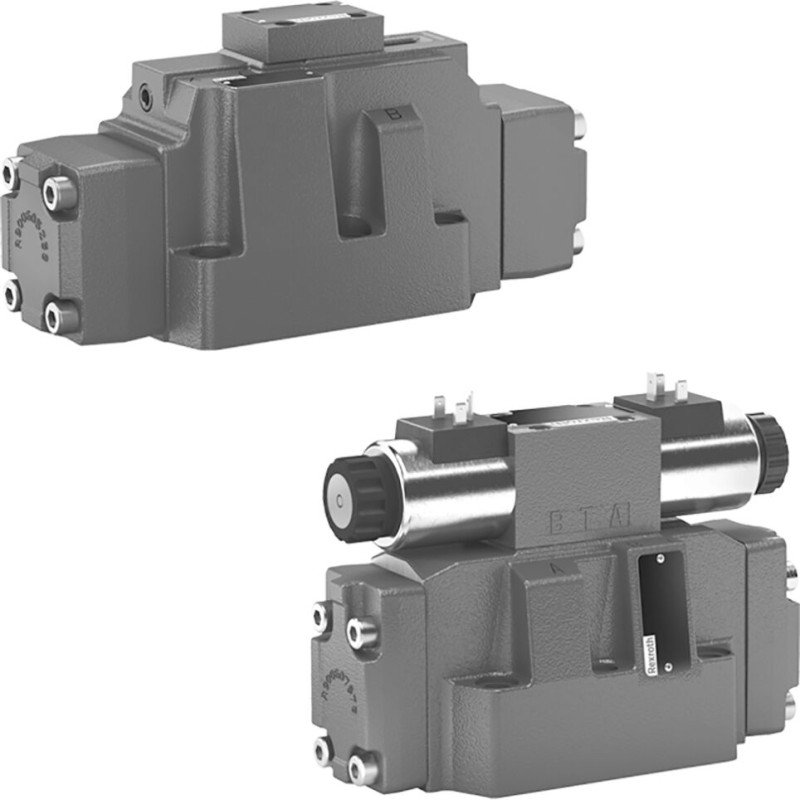

Industrial hydraulic valve in a high performance range. Reliable switch-over of the oil flow direction according to hydraulic symbol.
Features
- Spool valve
- Pilot-operated
Manual (2)
R901208378
(EN)
|
Sign in
|
|
21ce2475-6107-4166-afe3-6d9295236a8e_original
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 63 |
DIRECTIONAL SPOOL VALVE
4WE6JA7X/HG24N9K4/B10 |
R901108988
|
| 996 |
SEAL KIT
ZDR 6 DP0-4X/.YM W80 |
R900897416
|
| 998 |
SEAL KIT
WE 6.7X/H |
R961002638
|
| 999 |
SEAL KIT
WH 25.5X/6X/ |
R900309827
|
| 9990 |
PRESSURE RED.VALVE INTERMEDIATE PLATE
ZDR 6 DP0-4X/40YM W80*ET |
R961013776
|
