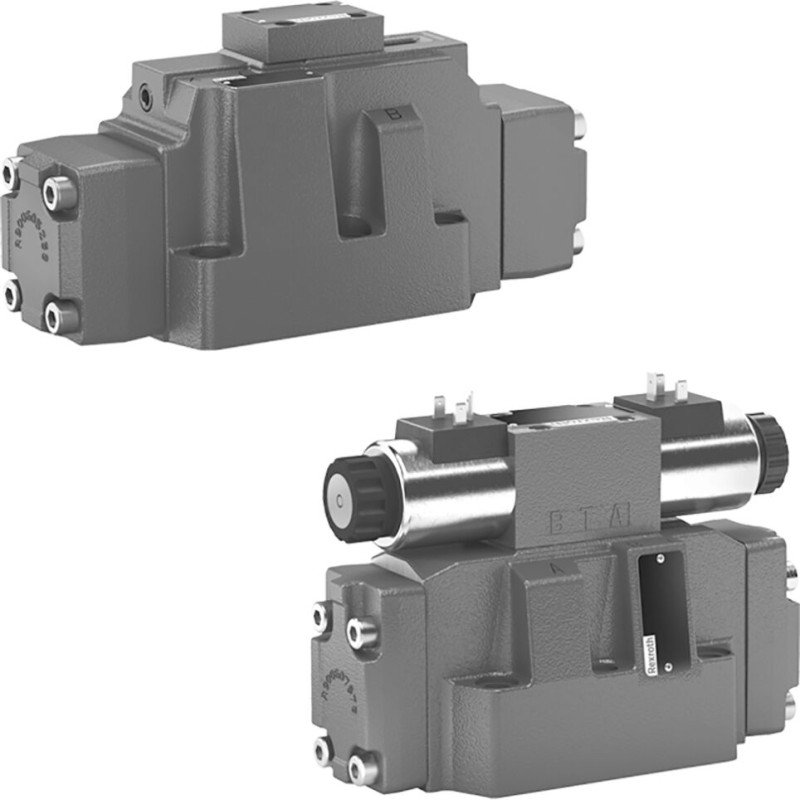

R901303720
H-4WEH25E6X/6EW110N9ETDK25L/B10D3

R901303720
  • Availability: on request
  • Weight: 17.61 KG
  • Part number: R901303720
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901303720
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 17.609 kg
Operating pressure, max. 350 bar
Max. flow 700 l/min
Other properties
Connection diagram ISO 4401-08-08-0-05
Product family H-4W.H..
ECLASS_13_Classification 51-44-01-02
Spool symbol Symbol E
Type of connection Subplate mounting
Size 25
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 3
Supply voltage 110…120 VAC
Electrical connector Connector, 5-pole according to ANSI/B93.55M-1981
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU
Conformity UKCA,CE
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

Features
  • Spool valve
  • Pilot-operated
  • Internal pilot oil supply, internal pilot oil return
Manual (2)
PDF R901303720 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WE6J6X/EW110N9DK25L/B10
 R900939510
996 SEAL KIT
ZDR 6 DP0-4X/.YM W80
 R900897416
998 SEAL KIT
WE 6.6X/E.D
 R900357575
999 SEAL KIT
WH 25.5X/6X/
 R900309827
9990 PRESSURE RED.VALVE INTERMEDIATE PLATE
ZDR 6 DP0-4X/40YM W80*ET
 R961013776
