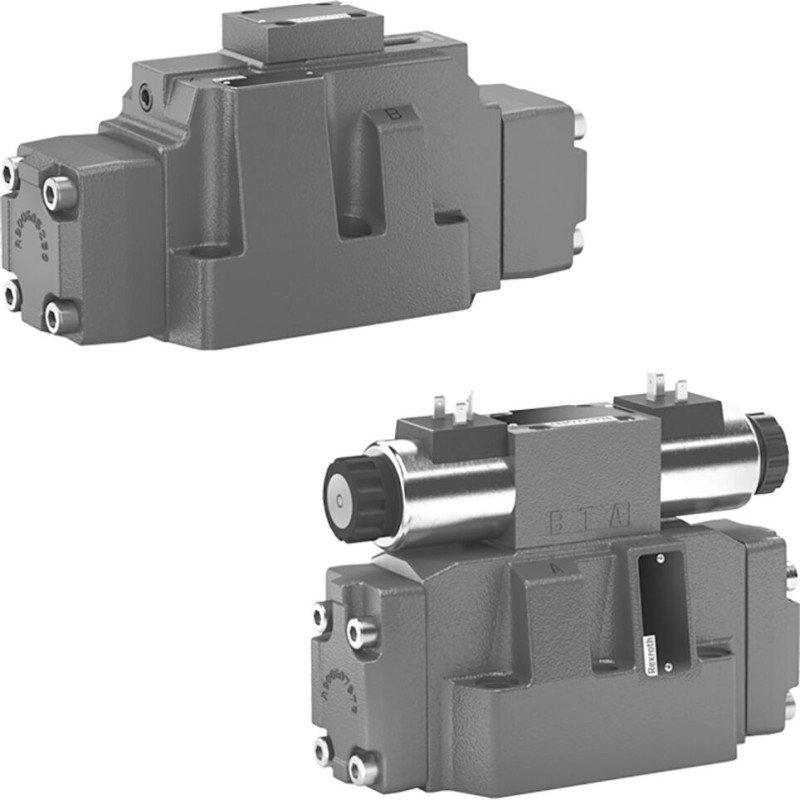

R901050596
H-4WEH25D42-6X/6EG24N9ETS2K4/B10D3

R901050596
  • Availability: on request
  • Weight: 19.18 KG
  • Part number: R901050596
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901050596
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 19.18 kg
Operating pressure, max. 350 bar
Max. flow 650 l/min
Other properties
Connection diagram ISO 4401-08-08-0-05
ECLASS_13_Classification 51-44-01-02
Product family H-4W.H..
Spool symbol Symbol D42
Type of connection Subplate mounting
Size 25
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Features
  • Directional on/off valve
  • Pilot-operated
  • Internal pilot oil supply, internal pilot oil return
  • without position switch
  • With concealed auxiliary actuation
Manual (2)
PDF R901050596 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
60 THROTTLE CHECK VALVE
Z2FS6-2-4X/1Q
 R900481621
63 DIRECTIONAL SPOOL VALVE
4WE6D6X/EG24N9K4/B10
 R900915069
996 SEAL KIT
ZDR 6 DP0-4X/.YM W80
 R900897416
997 SEAL KIT
Z2FS6.-4X/
 R900899023
998 SEAL KIT
WE 6.6X/E
 R900357573
999 SEAL KIT
WH 25.5X/6X/
 R900309827
9990 PRESSURE RED.VALVE INTERMEDIATE PLATE
ZDR 6 DP0-4X/40YM W80*ET
 R961013776
