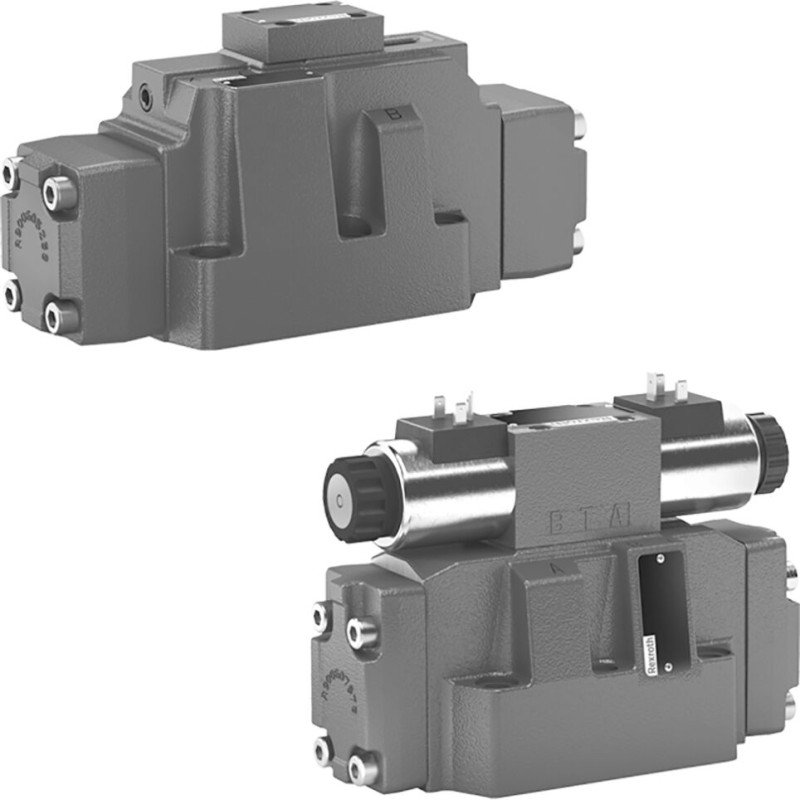

R900939919
H-4WEH16L7X/6EG24N9K4

R900939919
  • Availability: on request
  • Weight: 9.60 KG
  • Part number: R900939919
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R900939919
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 9.6 kg
Operating pressure, max. 350 bar
Max. flow 300 l/min
Other properties
Connection diagram ISO 4401-07-07-0-05
Product family H-4W.H..
ECLASS_13_Classification 51-44-01-02
Spool symbol Symbol L
Type of connection Subplate mounting
Size 16
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 3
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

Features
  • Spool valve
  • Pilot-operated
  • External pilot oil supply, external pilot oil return
Manual (2)
PDF R900939919 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WE6J6X/EG24N9K4
 R900561288
998 SEAL KIT
WE 6.6X/E
 R900357573
999 SEAL KIT
WH 16.5X/6X/7X/
 R900306345
Name Material Number
3P Z4 M GR SPEZ. R901017010
3P Z4 M SW SPEZ R901017011
3P Z5L M 12-240V SPEZ R901017022
