Physical size and weight
| Net weight |
7.161
kg |
| Operating pressure, max. |
350
bar |
| Max. flow |
160
l/min |
Other properties
| Connection diagram |
ISO 4401-05-05-0-05
|
| ECLASS_13_Classification |
51-44-01-02
|
| Product family |
H-4W.H..
|
| Spool symbol |
Symbol U10
|
| Type of connection |
Subplate mounting
|
| Size |
10
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
3
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Seals |
NBR
|
Description

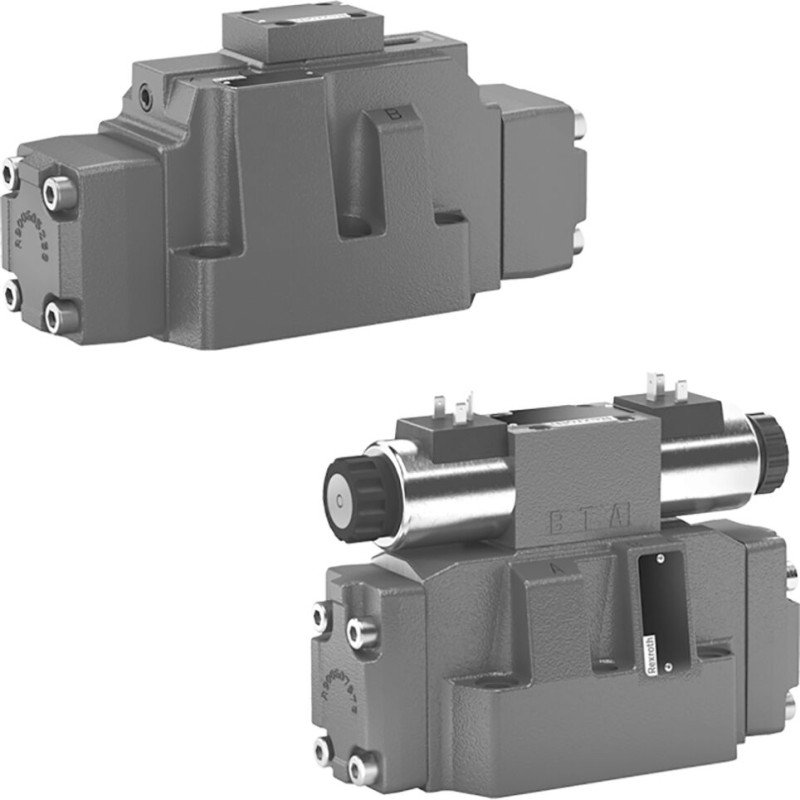

Industrial hydraulic valve in a high performance range. Reliable control of the oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Features
- Directional on/off valve
- Pilot-operated
- External pilot oil supply, external pilot oil return
- monitored rest position
